TRUSCO

TESS-77154

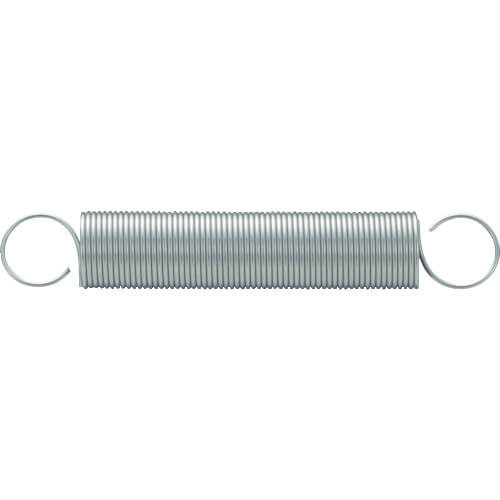

Extension Spring

฿274
฿329
แบรนด์ TRUSCO
รหัสสินค้า TESS-77154
รหัสบาร์โค้ด 4989999966312
รหัสสั่งซื้อ 125-7424
สต็อกในไทย0
สต็อกในญี่ปุ่น2
กำหนดการจัดส่ง
ไม่เกิน 2 ชิ้น : 9 วันทำการ
3 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • The mechanical spring wound as a hook with both ends tightened by applying constant tension to the wire rod.
  • A mechanical spring to use in pulling direction.
  • Class 2 of JIS B2704 is applied tolerance of dimensions and spring characteristics.
ข้อมูลสินค้า
  • Wire Diameter d (mm) : 0.45
  • Outer Diameter D (mm) : 5.0
  • Free Height L (mm) : 37.6
  • Number of Rolls (roll) : 62.5
  • Mechanical Spring Constant (N/mm) : 0.059
  • Allowable Weight (N) : 3.78
  • Load Height L1 (mm) : 89.3
  • Initial Tensile Strength (N) : 0.735
  • Hook Shape : Reverse Round Hook
  • Hook Counter Azimuth : 180degrees
  • Winding Direction : Right wind
วัสดุ
  • Stainless Steel (SUS304-WPB)
น้ำหนัก 20 g
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต TRUSCO TESS-77154 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ TRUSCO
หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ชิ้นส่วนเมคคาทรอนิกส์ สปริงบิด สปริงดึง (สแตนเลส)
