TRUSCO

TEST-88084

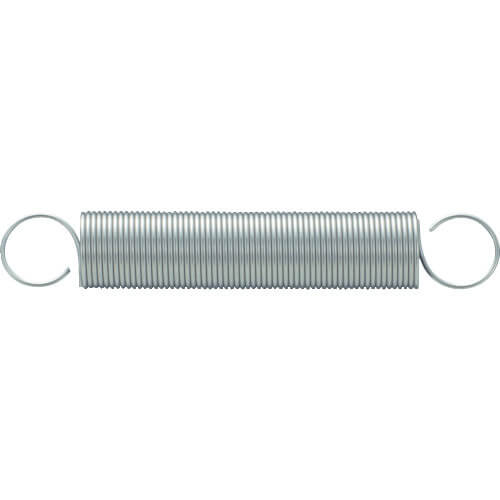

Extension Spring(Steel)

฿414
฿497
แบรนด์ TRUSCO
รหัสสินค้า TEST-88084
รหัสบาร์โค้ด 4989999999259
รหัสสั่งซื้อ 125-7648
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO TH TRUSCO JP
  • The mechanical spring wound as a hook with both ends tightened by applying constant tension to the wire rod.
  • A mechanical spring to use in pulling direction.
  • Class 2 of JIS B2704 is applied tolerance of dimensions and spring characteristics.
ข้อมูลสินค้า
  • Wire Diameter d (mm) : 0.63
  • Outer Diameter D (mm) : 6.93
  • Free Height L (mm) : 25.3
  • Number of Rolls (roll) : 19.5
  • Mechanical Spring Constant (N/mm) : 0.317
  • Allowable Weight (N) : 9.12
  • Load Height L1 (mm) : 48.6
  • Initial Tensile Strength (N) : 1.677
  • Hook Shape : Reverse Round Hook
  • Hook Counter Azimuth : 180degrees
  • Winding Direction : Right wind
วัสดุ
  • SWP-B (piano wire)
น้ำหนัก 15 g
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต TRUSCO TEST-88084 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ TRUSCO
หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ชิ้นส่วนเมคคาทรอนิกส์ สปริงบิด สปริงดึง (เหล็กกล้า)
