SANKO TECHNO

MU-16

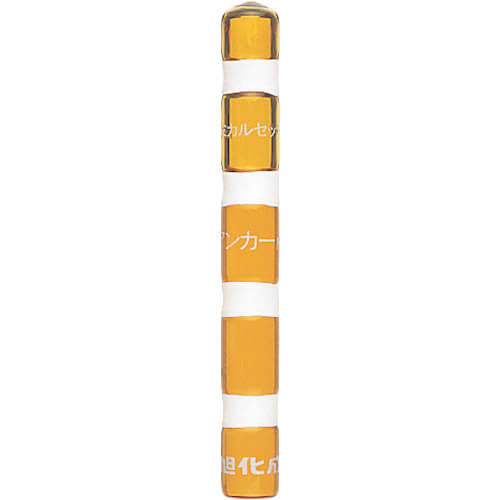

Adhesive Anchor AR Chemical Setter-MU Anchor(Non-mixing Type)

งดนำเข้า
฿164
฿197
แบรนด์ SANKO TECHNO
รหัสสินค้า MU-16
รหัสบาร์โค้ด 4562169341395
รหัสสั่งซื้อ 169-9504
ซัพพลายเออร์ TRUSCO
  • Strong adhesion can be obtained only by driving.
  • Construction with L- and U-shaped joint bars is possible .
  • A metal wire brush enables high adhesion.
ข้อมูลสินค้า
  • Outer Diameter (mm) : 16.5
  • Total Length (mm) : 120
  • Capacity ([[CM3]]) : 23.0
  • Bolt Used (variant steel bars) : M16, W5/8, (D16)
  • Drill Diameter (variant steel bars) (mm) : 19.0, 19.0, (20.0)
  • Punching Depth (mm) : 140
  • Maximum Tensile Load (kN) : 92.8
  • Long-term allowable tensile load (kN) : 25.3
  • Short-term allowable tensile load (kN) : 38.0
  • Driving type
วัสดุ
  • Base resin : Epoxy acrylate resin
น้ำหนัก 25.6 g
การใช้งาน
  • For fixing concrete blocks.
  • Installation of soundproof walls.
  • For tunnel construction etc.
  • ประเทศที่ผลิต Japan
    ข้อมูลจากผู้ผลิต SANKO TECHNO MU-16 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ SANKO TECHNO
    หม่วดหมู่สินค้า สกรู / ลูกล้อ / อุปกรณ์ติดตั้ง อุปกรณ์ยึดติด พุกเคมี พุกเคมี
