ISEL

MN-10-17

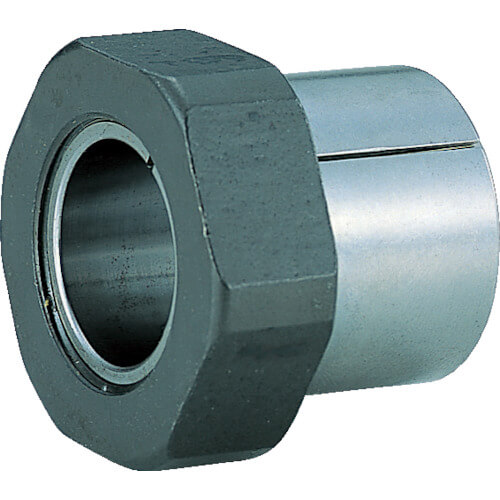

Mecha Lock Nut type

฿1,939
฿2,685
แบรนด์ ISEL
รหัสสินค้า MN-10-17
รหัสบาร์โค้ด 4580126500517
รหัสสั่งซื้อ 219-9475
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Since it can be mounted/dismounted just by tightening/loosening the nut, it is very easy to mount/dismount.
  • Has a centering function.
  • Positioning and phase matching can be done at any position, and fastening with no backlash is possible.
ข้อมูลสินค้า
  • Inner Diameter (mm) : 10
  • Outer Diameter (mm) : 17
  • Length (mm) : 12
  • Allowable Max Torque (N/m) : 34.3
  • Allowable Thrust (N/m) : 6.9
  • Width Across-Flat Dimension (mm) : 24
  • Nut tightening type
  • Working Temperature Range : -20 to 100°C
วัสดุ
  • Steel
น้ำหนัก 43 g
การใช้งาน
  • When wall thickness of a hub is thin, or for places with light torque.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier ISEL MN-10-17
    หม่วดหมู่แบรนด์ ISEL
    หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ตลับลูกปืน / อุปกรณ์ขับขี่ / ชิ้นส่วนเกียร์ คัปปลิ้ง คัปปลิ้ง
