SUGATSUNE

MKR-N40M10

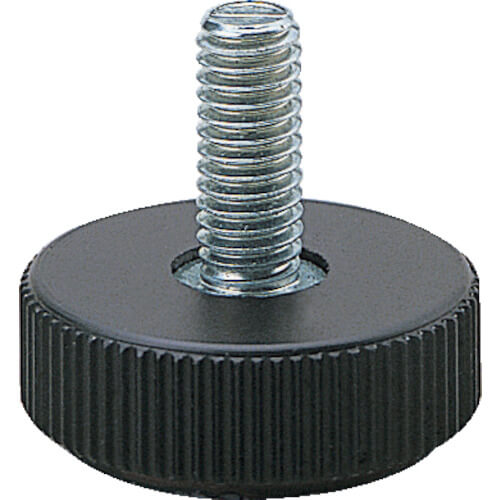

Adjuster Bolt

฿177
฿245
แบรนด์ SUGATSUNE
รหัสสินค้า MKR-N40M10
รหัสบาร์โค้ด 4510932840385
รหัสสั่งซื้อ 253-8547
สต็อกในไทย0
สต็อกในญี่ปุ่น49
กำหนดการจัดส่ง
ไม่เกิน 49 ชิ้น : 9 วันทำการ
50 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • With a head swingin mechanism of approximately 10°, the unit can be kept level even on an uneven floor.
  • With the dual layered structure of the main unit and the bottom, height adjustment is possible with the bottom still on the ground.
ข้อมูลสินค้า
  • Color : Black
  • Allowable Weight (kgf) : 70
  • Screw Dimension : M10
  • Screw Length (mm) : 22
  • Total Height (mm) : 37.0
  • Pedestal Diameter (mm) : 41
  • Head Swing Angle : Approx. 10°
วัสดุ
  • Screw : Steel
  • Pedestal : Polyamide (PA)
  • Bottom : Elastomer Resin
น้ำหนัก 45 g
การใช้งาน
  • Measuring equipment/steel cabinet.
  • ประเทศที่ผลิต Japan
