NICHIAS

9510H-UE-4

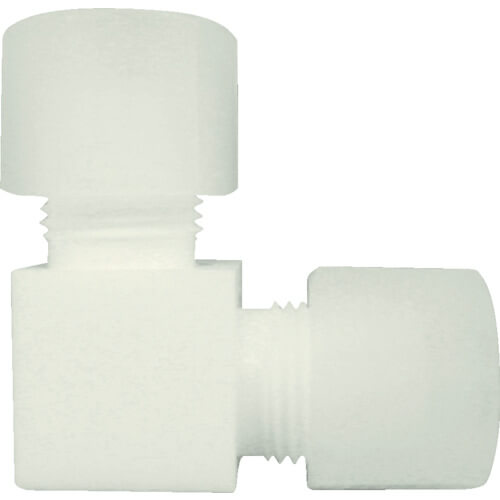

Naflon PTFE Tube Connector

มีค่าขนส่ง
฿3,270
฿4,528
แบรนด์ NICHIAS
รหัสสินค้า 9510H-UE-4
รหัสบาร์โค้ด 4975989501281
รหัสสั่งซื้อ 282-9690
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO TH
คำเตือน สินค้าขนาดใหญ่ / หนัก มีค่าขนส่ง
  • Only inserting a tube into a nut that is set by the coupling main body to the point of contacting a stopper and fastening the union nut, and then the specified performance can be demonstrated.
  • Excellent in chemical resistance.
ข้อมูลสินค้า
  • Applicable Tube Outer Diameter (mm) : 4
  • Inner Diameter (mm) : 3
  • Continuous working temperature : -15 to 150°C
  • Continuous working pressure : MAX (for a tube with 1mm thickness)1MPa (10kgf/[[CM2]])at 25℃
  • Applicable fluid : Most of acid, alkaline, solvents
วัสดุ
  • Fluorine resin (PTFE)/Nut part : Fluorine resin (PFA/PTFE)
น้ำหนัก 8 g
ประเทศที่ผลิต Japan
เว็บของ Supplier NICHIAS 9510H-UE-4
หม่วดหมู่แบรนด์ NICHIAS
หม่วดหมู่สินค้า อุปกรณ์วิทยาศาสตร์ เครื่องมือวิเคราะห์ในงานเคมี แปรงล้างหลอดทดลอง ข้อต่อท่อยางฟลูออโรเรซิน
