ISEL

MKA-30-48

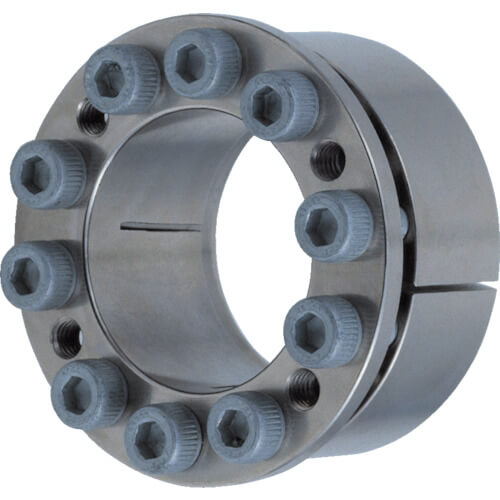

Mecha Lock

฿4,460
฿6,175
แบรนด์ ISEL
รหัสสินค้า MKA-30-48
รหัสบาร์โค้ด 4580126504164
รหัสสั่งซื้อ 324-0169
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Resistant to rust since it has anti-rust plating.
  • A compact type that minimized the outer diameter dimension.
  • The centering effect is excellent due to the inlay provided in the collar of the inner ring.
  • Phase matching and positioning can be made freely.
  • When tightening the lock bolt, there is no movement in the axial direction of the hub.
  • Since it is non-backlash, there is no play.
ข้อมูลสินค้า
  • Inner Diameter (mm) : 30
  • Outer Diameter (mm) : 48
  • Length (mm) : 26.6
  • Allowable Max Torque (N/m) : 396.0
  • Allowable Thrust (N/m) : 26.4
  • Simple anti-rust plating type
  • Working Temperature Range : -20 to 100°C
วัสดุ
  • Steel
น้ำหนัก 208 g
การใช้งาน
  • Machine tools, transportation equipment, robots, various automatic machines.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier ISEL MKA-30-48
    หม่วดหมู่แบรนด์ ISEL
    หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ตลับลูกปืน / อุปกรณ์ขับขี่ / ชิ้นส่วนเกียร์ คัปปลิ้ง คัปปลิ้ง
