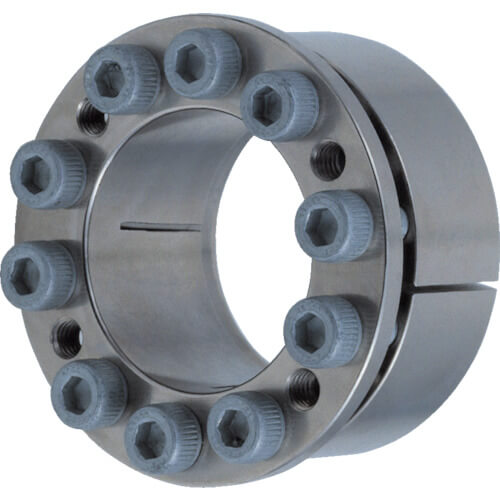

ISEL

MKA-35-57

Mecha Lock

฿4,511
฿6,246
แบรนด์ ISEL
รหัสสินค้า MKA-35-57
รหัสบาร์โค้ด 4580126504188
รหัสสั่งซื้อ 324-0185
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Resistant to rust since it has anti-rust plating.
  • A compact type that minimized the outer diameter dimension.
  • The centering effect is excellent due to the inlay provided in the collar of the inner ring.
  • Phase matching and positioning can be made freely.
  • When tightening the lock bolt, there is no movement in the axial direction of the hub.
  • Since it is non-backlash, there is no play.
ข้อมูลสินค้า
  • Inner Diameter (mm) : 35
  • Outer Diameter (mm) : 57
  • Length (mm) : 30.0
  • Allowable Max Torque (N/m) : 548.0
  • Allowable Thrust (N/m) : 31.3
  • Simple anti-rust plating type
  • Working Temperature Range : -20 to 100°C
วัสดุ
  • Steel
น้ำหนัก 325 g
การใช้งาน
  • Machine tools, transportation equipment, robots, various automatic machines.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier ISEL MKA-35-57
    หม่วดหมู่แบรนด์ ISEL
    หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ตลับลูกปืน / อุปกรณ์ขับขี่ / ชิ้นส่วนเกียร์ คัปปลิ้ง คัปปลิ้ง
