TRUSCO

TVD-75A

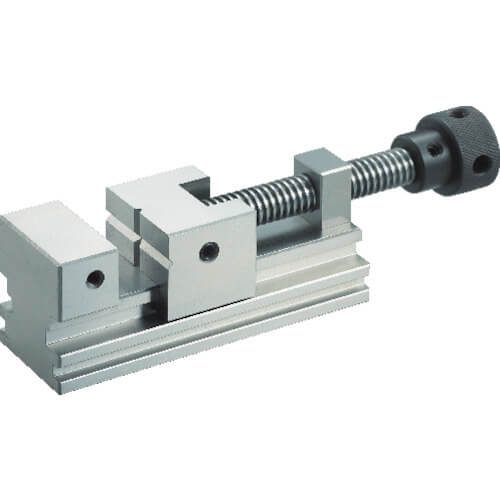

Precision Vice

฿24,016
฿33,252
แบรนด์ TRUSCO
รหัสสินค้า TVD-75A
รหัสบาร์โค้ด 4989999184846
รหัสสั่งซื้อ 328-5839
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Ultra-precision machining can be applied speedily.
  • Since the four sides are precision polished, it can be used either vertically or horizontally.
  • Super precision machining is realized by outstanding right angle and parallelism.
ข้อมูลสินค้า
  • Total Length x Total Width x Total Height (mm) : 180 x 73 x 78
  • Opening Width (mm) : 73
  • Opening (mm) : 95
  • Opening Depth (mm) : 35
  • Max Tightening Power (kN) : 7.84
  • Perpendicularity within ±0.005mm/100mm
  • Parallelism within ± 0.005mm/100mm
วัสดุ
  • Main body : carbon tool steel (SKS-93) (Hardness HRC56 to 60)
น้ำหนัก 6.1kg
ประเทศที่ผลิต China
เว็บของ Supplier TRUSCO TVD-75A
หม่วดหมู่แบรนด์ TRUSCO
หม่วดหมู่สินค้า อุปกรณ์เครื่องจักร ทูลลิ่ง จิ๊กฟิกซ์เจอร์ ปากกาจับชิ้นงานเครื่องจักร ปากกาจับชิ้นงานสำหรับงานละเอียด
