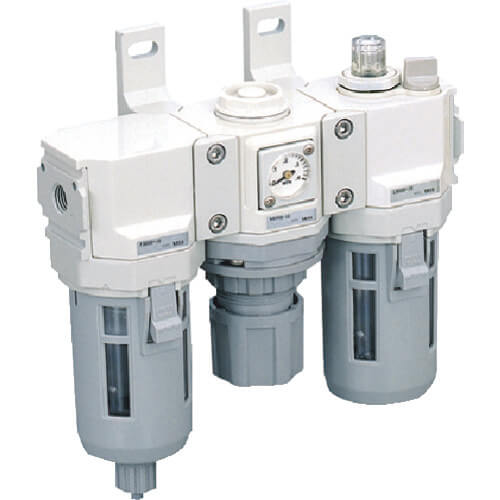

CKD

C4000-15-W

FRL Air Unit

฿4,718
฿5,662
แบรนด์ CKD
รหัสสินค้า C4000-15-W
รหัสบาร์โค้ด 4547431017413
รหัสสั่งซื้อ 344-4414
สต็อกในไทย 0
สต็อกในญี่ปุ่น 3
กำหนดการจัดส่ง 8 วันทำการ
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • A space-saving type that integrates the 3 items of a filter, regulator, and lubricator.
  • The pressure gauge has been embedded in the body to realize a clean design while also ensuring safety.
  • When partially damaged, it is possible to replace only the corresponding parts.
ข้อมูลสินค้า
  • Filtration Precision (μm) : 5
  • Working Pressure (MPa) : 1
  • Processing Air Volume ([[M3]]/min) : 3.0
  • Set Pressure (MPa) : 0.05 to 0.85
  • Oil Reservoir Capacity ([[CM3]]) : 170
  • Connection Port Diameter : Rc1/2
  • Total Length x Total Width (mm) : 226 x 240
  • Working fluid : Air
  • Fluid temperature : 5 to 60°C
  • Drain discharge method : Manual
  • Working oil : Type 1 turbine oil (ISO VG#32 equivalent)
  • Pressure gauge with bracket
น้ำหนัก 1.79kg
ประเทศที่ผลิต China
ข้อมูลจากผู้ผลิต CKD C4000-15-W (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ CKD
หม่วดหมู่สินค้า อุปกรณ์นิวเมติกส์ อุปกรณ์นิวเมติก / อุปกรณ์ไฮดรอลิก ชุดกรองลมปรับแรงดัน ชุด FRL (ชุดปรับปรุงคุณภาพลม)
