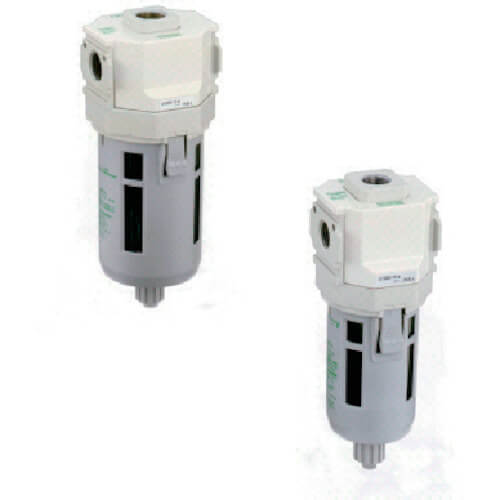

CKD

DT4010-15-W

Automatic Drain Snap Drain

฿2,908
฿3,490
แบรนด์ CKD
รหัสสินค้า DT4010-15-W
รหัสบาร์โค้ด 4547431018212
รหัสสั่งซื้อ 353-1660
สต็อกในไทย0
สต็อกในญี่ปุ่น2
กำหนดการจัดส่ง
ไม่เกิน 2 ชิ้น : 9 วันทำการ
3 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO TH TRUSCO JP
  • A new type of drain discharger that realizes a long life and high reliability by employing a snap method of a new mechanism while also being lightweight and compact.
  • Connection ports positioned on the top and side for 2 directions enables connections according to the application.
  • The 2 types of a normally open type (DT3000, DT4000)and a normally closed type (DT3010, DT4010)are available to suit different applications.
ข้อมูลสินค้า
  • Working Pressure (MPa) : 0.15 to 1.0
  • Drain Discharge Rate ([[CM3]]/times) : 30
  • Connection Port Diameter : Rc1/2
  • W x D x H (mm) : 84 x 79 x 201
  • Working fluid : Drain (water or oil)within the Air/Guaranteed withstanding pressure : 1.5MPa
  • Fluid temperature : 5 to 60°C
  • Drain discharge method : Snap mechanism
น้ำหนัก 450 g
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต CKD DT4010-15-W (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ CKD
หม่วดหมู่สินค้า อุปกรณ์นิวเมติกส์ อุปกรณ์นิวเมติก / อุปกรณ์ไฮดรอลิก ชุดกรองลมปรับแรงดัน ตัวเดรนน้ำอัตโนมัติ (ออโต้เดรน)
