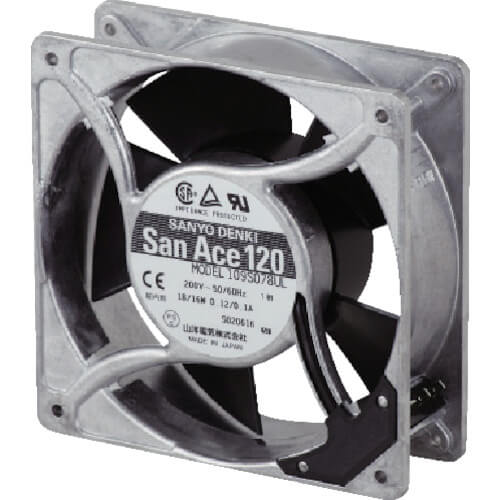

SANYO DENKI

S-109S092

Cooling AC FAN San Ace

฿1,131
฿1,358
แบรนด์ SANYO DENKI
รหัสสินค้า S-109S092
รหัสสั่งซื้อ 353-2445
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • Forced air cooling to heat source of the equipment and the inside of the control panel by fan blowing.
  • Controlling the temperature rise of parts will extend the life of the equipment.
  • Easy operating simply by connecting AC power supply for alternating current power supply. (wire x 2)
ข้อมูลสินค้า
  • Angular Dimension (mm) : □92
  • Thickness (mm) : 25
  • Rated Voltage (V) : AC200
  • 50Hz : 0.95
  • Air Volume ([[M3]]/min) 60Hz : 1.10
  • 50Hz : 39.2
  • Static Pressure (Pa) 60Hz : 49.0
  • 50Hz : 35
  • Sound Pressure Level (dB (A)) 60Hz : 38
  • Expected Life (Hour) : 25000
  • Operating Voltage Range : Rated voltage ±10%, Operating Temperature Range : -30 to 60°C (free of condensation)
  • Protection Function : Burnout Protection Bag (prevents heating of the winding by limiting the current at the time of the blade restraint roll)
  • Definition of Expected Life : With rated voltage, continuous operation, ambient temperature of 60°C, residual rate of 90%
วัสดุ
  • Frame : aluminum die-cast
  • Blade : Resin (PPHOX)
อุปกรณ์ในกล่อง
  • Power Supply Plug Cord (□ 60mm fan is none included due to lead wire accessory specs)
น้ำหนัก 290 g
การใช้งาน
  • Heat source cooling of communication equipment, control equipment, and power supply equipment etc.
  • Blowing, circulation, and diffusion of air.
  • ประเทศที่ผลิต Japan
    ข้อมูลจากผู้ผลิต SANYO DENKI S-109S092 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ SANYO DENKI
    หม่วดหมู่สินค้า ชิ้นส่วนอิเล็กทรอนิกส์ อุปกร์อิเล็กทรอนิกส์ พัดลมระบายความร้อน พัดลมระบายความร้อน
