CKD

AP11E2-25A-C4T-AC100V

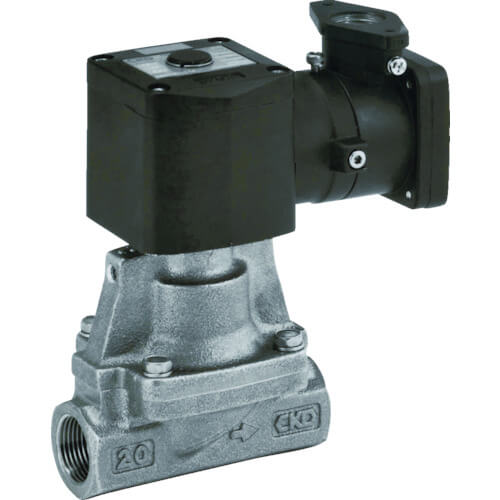

Pilot Operated Explosion Proof 2port Solenoid Valve

฿13,462
฿16,154
แบรนด์ CKD
รหัสสินค้า AP11E2-25A-C4T-AC100V
รหัสบาร์โค้ด 4547431019240
รหัสสั่งซื้อ 376-8406
สต็อกในไทย 0
สต็อกในญี่ปุ่น 4
กำหนดการจัดส่ง 8 วันทำการ
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
ข้อมูลสินค้า
  • Effective Area ([[MM2]]) : 231
  • Connection Port Diameter : Rc1
  • Power (V) : AC100
  • Working fluid : Steam, air, water, kerosene, oil
  • Fluid temperature : 5 to 181°C
  • Working pressure : 0.05 to 2MPa (1MPa when the working fluid is steam)
  • d2G2 pressure-resistant and explosion proof structure (explosion grade 2, degree of ignition G2)
  • NC (open when energized)
  • Piston driving method
น้ำหนัก 3kg
ประเทศที่ผลิต Japan
ข้อมูลจากผู้ผลิต CKD AP11E2-25A-C4T-AC100V (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ CKD
หม่วดหมู่สินค้า อุปกรณ์นิวเมติกส์ อุปกรณ์นิวเมติก / อุปกรณ์ไฮดรอลิก โซลินอยด์วาล์ว โซลินอยด์วาล์ว (ชนิดป้องกันการระเบิด)
