CKD

C2000-8-W-F1

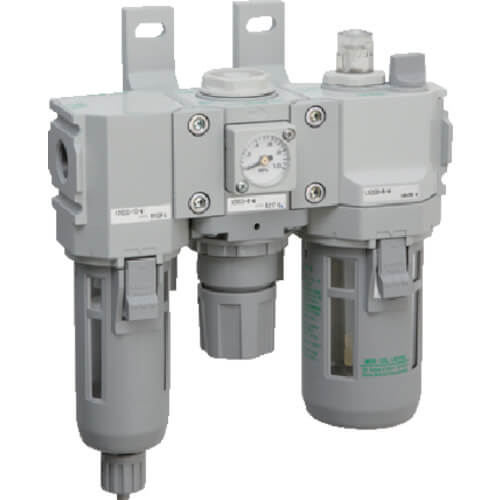

FRL Air Unit(c/w Auto Drain)

฿3,959
฿4,751
แบรนด์ CKD
รหัสสินค้า C2000-8-W-F1
รหัสบาร์โค้ด 4547431018137
รหัสสั่งซื้อ 376-8538
สต็อกในไทย 0
สต็อกในญี่ปุ่น 4
กำหนดการจัดส่ง 8 วันทำการ
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • A space-saving type that integrates the 3 items of a filter, regulator, and lubricator.
  • The pressure gauge has been embedded in the body to realize a clean design while also ensuring safety.
  • When partially damaged, it is possible to replace only the corresponding parts.
ข้อมูลสินค้า
  • Filtration Precision (μm) : 5
  • Working Pressure (MPa) : 1
  • Processing Air Volume ([[M3]]/min) : 1.2
  • Set Pressure (MPa) : 0.05 to 0.85
  • Oil Reservoir Capacity ([[CM3]]) : 85
  • Connection Port Diameter : Rc1/4
  • Total Length x Total Width (mm) : 193 x 163
  • Working fluid : Air
  • Fluid temperature : 5 to 60°C
  • Drain discharge method : Auto drain
  • Working oil : Type 1 turbine oil (ISO VG#32 equivalent)
  • Pressure gauge with bracket
น้ำหนัก 1.01kg
ประเทศที่ผลิต China
ข้อมูลจากผู้ผลิต CKD C2000-8-W-F1 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
หม่วดหมู่แบรนด์ CKD
หม่วดหมู่สินค้า อุปกรณ์นิวเมติกส์ อุปกรณ์นิวเมติก / อุปกรณ์ไฮดรอลิก ชุดกรองลมปรับแรงดัน ชุด FRL (ชุดปรับปรุงคุณภาพลม)
