YOSHITAKE

TD-10NA-15A

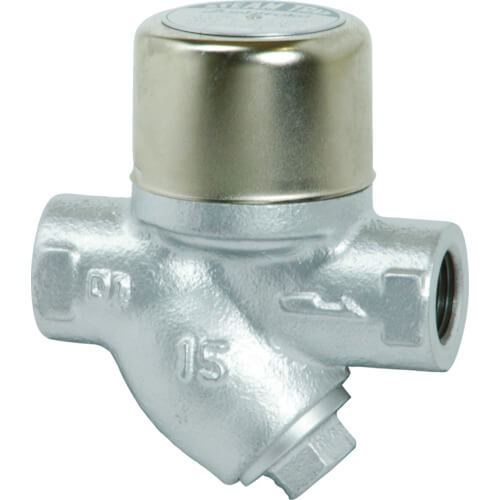

Steam Trap

฿8,557
฿11,849
แบรนด์ YOSHITAKE
รหัสสินค้า TD-10NA-15A
รหัสบาร์โค้ด 4589946544855
รหัสสั่งซื้อ 382-5558
สต็อกในไทย0
สต็อกในญี่ปุ่น4
กำหนดการจัดส่ง
ไม่เกิน 4 ชิ้น : 9 วันทำการ
5 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • A disc type trap.
  • Small and lightweight, and piping installation direction (horizontal/vertical)is optional.
  • Built-in strainer type.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 15
  • Nominal Diameter (B) : 1/2
  • L (mm) : 90
  • H1 (mm) : 49
  • Applicable pressure : 0.035 to 2.0MPa
  • Back pressure tolerance : 50% of the inlet side pressure or less
  • Max Working Temperature : 220°C
  • Connection Method : JIS Rc
วัสดุ
  • Main Body : Spheroidal Graphite Cast Iron (FCD450)
  • Disc/valve washer : Stainless steel
น้ำหนัก 900 g
การใช้งาน
  • Applicable Fluid : Steam Drain.
  • For steam transport pipe or piping trace line.
  • ประเทศที่ผลิต Thailand
