TAICA

SF-2

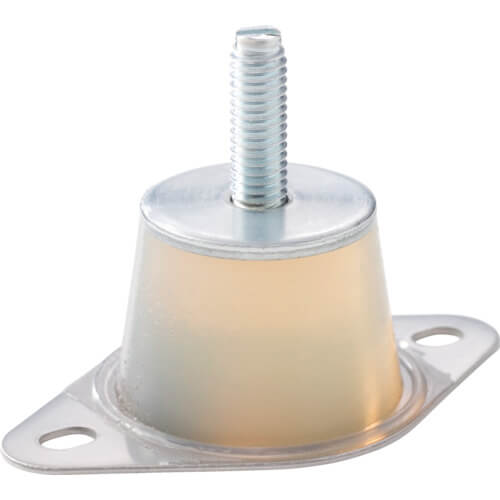

Vibration Damper Insulator with Prate

฿1,075
฿1,489
แบรนด์ TAICA
รหัสสินค้า SF-2
รหัสบาร์โค้ด 4571191312099
รหัสสั่งซื้อ 396-6640
สต็อกในไทย0
สต็อกในญี่ปุ่น222
กำหนดการจัดส่ง
ไม่เกิน 222 ชิ้น : 9 วันทำการ
223 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Because the natural frequency is designed to be low, it is capable of isolating vibrations in the low frequency range.
  • A single-molded type where a bolt is set in the top and a plate is set in the bottom.
  • With four points of support, it can isolate the vibration of equipment weighing 5 to 50kg.
ข้อมูลสินค้า
  • Recommended Frequencies (Hz) : 22 and up
  • Proper Load (kg) : 1.25 to 3.25
  • Outer Dimensions (mm) : 24・30
  • Gel Height (mm) : 22
  • Total Height (mm) : 40
  • Screw Dimension : M6
วัสดุ
  • Rubber : Silicone Gel
  • Bolts : Iron (trivalent chromate plating)
  • Plate : Stainless Steel (SUS304)
น้ำหนัก 33 g
การใช้งาน
  • Isolating vibration of vacuum pump and compressor.
  • ประเทศที่ผลิต China
    เว็บของ Supplier TAICA SF-2
    หม่วดหมู่แบรนด์ TAICA
    หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ชิ้นส่วนเมคคาทรอนิกส์ ยางรองแท่นเครื่อง ยางรองแท่นเครื่อง (ชนิดติดตั้ง)
