NOGA

KP02-090

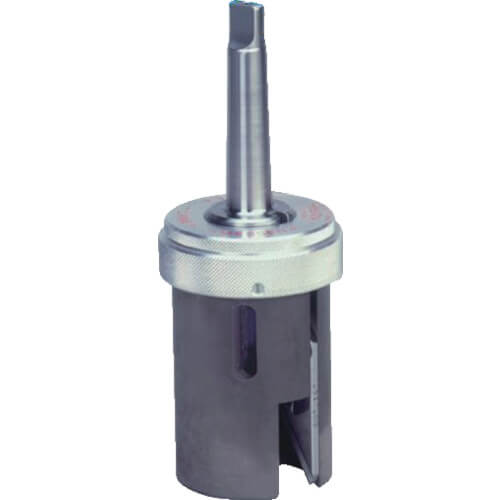

Counter Sink (Outer Device)

฿28,958
฿40,095
แบรนด์ NOGA
รหัสสินค้า KP02-090
รหัสบาร์โค้ด 4534644065522
รหัสสั่งซื้อ 404-4690
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.
  • The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.
  • The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.
ข้อมูลสินค้า
  • Chamfering Diameter (mm) : 9 to 45
  • A (mm) : 48
  • B (mm) : 65
  • C (mm) : 85
  • Shank Size : MT2
  • Chamfering Angle (°) : 90
  • Model Type : 10-46
  • Applicable Blade : KP02-310
วัสดุ
  • Blade : High Speed Steel
น้ำหนัก 1.2kg
การใช้งาน
  • For chamfering processing of the outer diameter.
  • For chamfering of the end surfaces of a round rod or square bar, etc.
  • ประเทศที่ผลิต France
    เว็บของ Supplier NOGA KP02-090
    หม่วดหมู่แบรนด์ NOGA
    หม่วดหมู่สินค้า คัตติ้งทูล เครื่องมือลบคม ดอกแชมเฟอร์ ดอกลบคม
