NOGA

KP02-166

Counter Sink (Outer Device)

฿55,147
฿66,176
แบรนด์ NOGA
รหัสสินค้า KP02-166
รหัสบาร์โค้ด 4534644065621
รหัสสั่งซื้อ 404-4754
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO

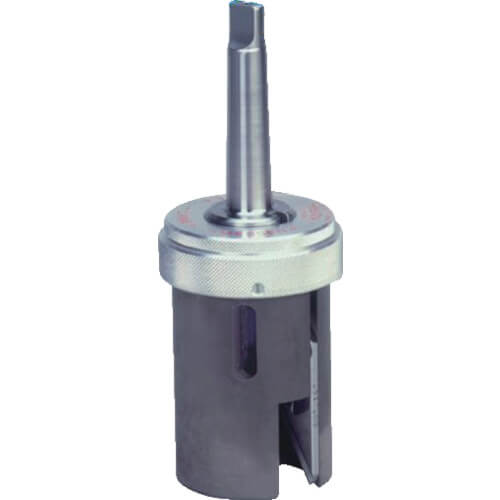

  • The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.
  • The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.
  • The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.
ข้อมูลสินค้า
  • Chamfering Diameter (mm) : 60 to 97
  • A (mm) : 100
  • B (mm) : 110
  • C (mm) : 107
  • Shank Size : MT3
  • Chamfering Angle (°) : 90
  • Model Type : 60-100
  • Applicable Blade : KP02-310
วัสดุ
  • Blade : High Speed Steel
น้ำหนัก 3.4kg
การใช้งาน
  • For chamfering processing of the outer diameter.
  • For chamfering of the end surfaces of a round rod or square bar, etc.
  • ประเทศที่ผลิต France
    ข้อมูลจากผู้ผลิต NOGA KP02-166 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ NOGA
    หม่วดหมู่สินค้า คัตติ้งทูล เครื่องมือลบคม ดอกแชมเฟอร์ ดอกลบคม
