NOGA

KP04-110

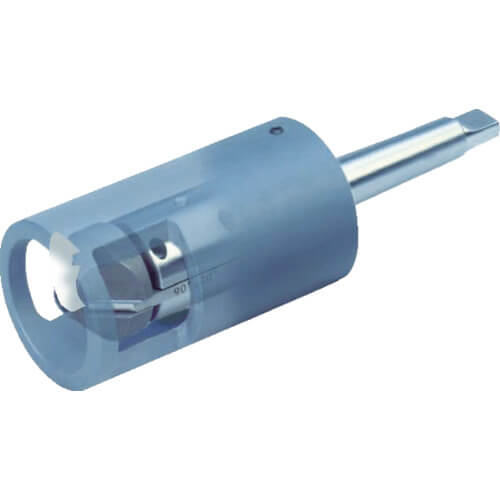

Counter Sink (Device for Tube)

฿51,052
฿70,688
แบรนด์ NOGA
รหัสสินค้า KP04-110
รหัสบาร์โค้ด 4534644066550
รหัสสั่งซื้อ 404-4932
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Chamfering of the inner side and outer side of a pipe can be done at the same time and each can be separately configured.
  • The KOPAL chamfering unit is made up of a combination of the main body, blade, and guide.
  • The cone-shaped guide for which the height can be adjusted with a spring serves the role of centering the workpiece.
  • The high speed steel blade is locked with a nut and the protrusion of the blade can be configured.
ข้อมูลสินค้า
  • Inner Diameter : 29 to 40
  • Chamfering Diameter (mm) Outer Diameter : 34 to 45
  • A (mm) : 67
  • B (mm) : 112
  • Shank Size : MT2.0
  • Chamfering Angle (°) : 90
  • Model Type : K4
  • Applicable Blade : KP04-320/330
วัสดุ
  • Blade : High Speed Steel
น้ำหนัก 1.7kg
การใช้งาน
  • For chamfering processing of the inner and outer diameters.
  • Simultaneous chamfering of the inner side and outer side of a pipe.
  • ประเทศที่ผลิต France
    เว็บของ Supplier NOGA KP04-110
    หม่วดหมู่แบรนด์ NOGA
    หม่วดหมู่สินค้า คัตติ้งทูล เครื่องมือลบคม ดอกแชมเฟอร์ ดอกลบคม
