SANKO TECHNO

TCW-1010

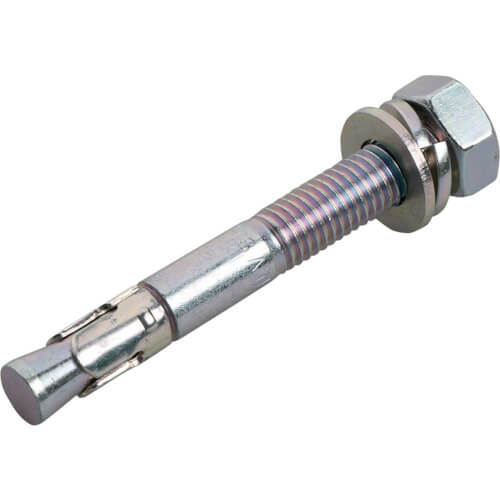

Torque Control Anchor (30 Set)

฿65
฿79
แบรนด์ SANKO TECHNO
รหัสสินค้า TCW-1010
รหัสบาร์โค้ด 4996620170222
รหัสสั่งซื้อ 431-2902
สต็อกในไทย0
สต็อกในญี่ปุ่น60
กำหนดการจัดส่ง
ไม่เกิน 60 ชิ้น : 9 วันทำการ
61 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • It follows the tensile force, and the expanded part opens. This follow and expansion function enables releasing of stable strength.
  • The diameter of the main body equals the diameter of the screw. Construction is possible from the top of the attachment.
ข้อมูลสินค้า
  • Nominal Designation of Thread : M10
  • Total Length (mm) : 100
  • Screw Length (mm) : 57
  • Max Attachment Thickness (mm) : 35
  • Drill Diameter (mm) : 10
  • Standard Construction Torque (N・m) : 30
  • Maximum Tensile Load (kN) : 16.4
  • Max shear load (kN) : 20.4
  • Effective buried depth (mm) : 40 or more
  • Packaged in a box
วัสดุ
  • Steel
  • Surface treatment : Trivalent chromate treatment
น้ำหนัก 69.7 g
การใช้งาน
  • For installing pipe duct, etc.
  • ประเทศที่ผลิต Taiwan
    ข้อมูลจากผู้ผลิต SANKO TECHNO TCW-1010 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
