NEW STRONG

SASF-8

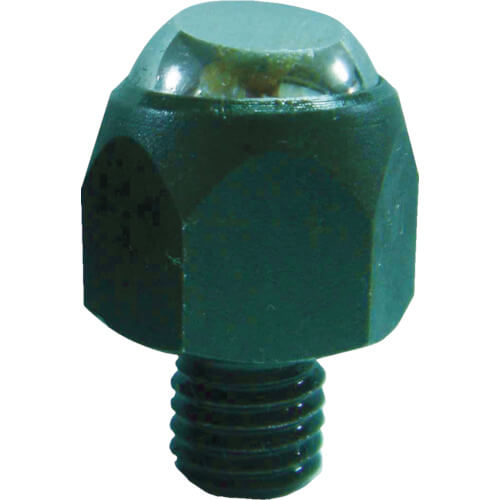

Swivel Aligning

฿1,356
฿1,878
แบรนด์ NEW STRONG
รหัสสินค้า SASF-8
รหัสบาร์โค้ด 4560290967637
รหัสสั่งซื้อ 437-9641
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • It can be used for inclinations up to 9°.
  • The main body has a hexagon shape so installation is easy.
  • It is a short type so the jig design is easy.
  • It is a flat type so it does not scratch the workpieces.
ข้อมูลสินค้า
  • Total Length (mm) : 25
  • Head length (mm) : 12
  • Bolt Diameter : M8
  • Flat surface diameter (mm) : Φ8
  • Hexagon width (mm) : 14
วัสดุ
  • Main body : Steel (S45C), Steel ball : Steel (SVJ2)
  • Hardness : HRC35 (main body), HRC62 (steel ball)
น้ำหนัก 15 g
การใช้งาน
  • As receiving bolt of workpieces with inclination.
  • ประเทศที่ผลิต Taiwan
    เว็บของ Supplier NEW STRONG SASF-8
    หม่วดหมู่แบรนด์ NEW STRONG
    หม่วดหมู่สินค้า อุปกรณ์เครื่องจักร ทูลลิ่ง จิ๊กฟิกซ์เจอร์ แคลมป์สำหรับเครื่องจักร แคลมป์สำหรับเครื่องจักร
