MATEX

8851ND-3.0-FF-10K-50A

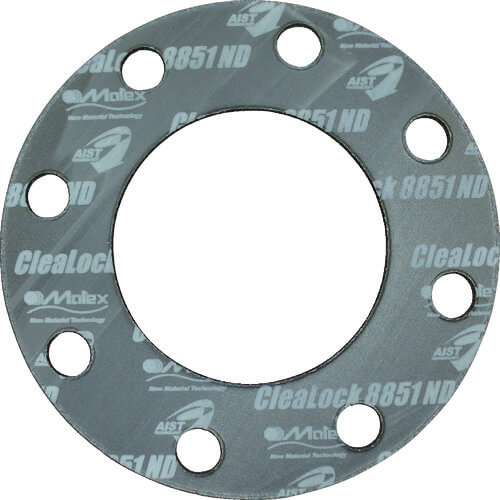

Japan Matex Expanded Graphite Gasket

฿1,431
฿1,982
แบรนด์ MATEX
รหัสสินค้า 8851ND-3.0-FF-10K-50A
รหัสบาร์โค้ด 4571407291514
รหัสสั่งซื้อ 442-3241
สต็อกในไทย0
สต็อกในญี่ปุ่น16
กำหนดการจัดส่ง
ไม่เกิน 16 ชิ้น : 9 วันทำการ
17 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • A gasket that achieves high sealing property and has excellent heat resistance and chemical resistance.
  • By applying special treatment to the surface, sticking to the flange has been greatly reduced.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 50
  • Nominal Diameter (B) : 2
  • Inner Diameter (mm) : 61
  • Outer Diameter (mm) : 155
  • Thickness (mm) : 3
  • Hole Number : 4
  • Working Pressure (K) : 10
  • Working temperature range : -240 to 420°C (steam : up to 650℃)
  • Pressure limitation : 5MPa
วัสดุ
  • Expanded graphite
น้ำหนัก 86 g
การใช้งาน
  • General industrial flange gasket, heat exchanger and boiler.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier MATEX 8851ND-3.0-FF-10K-50A
    หม่วดหมู่แบรนด์ MATEX
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ปะเก็น ปะเก็น
