NEW STRONG

VCIM-2540

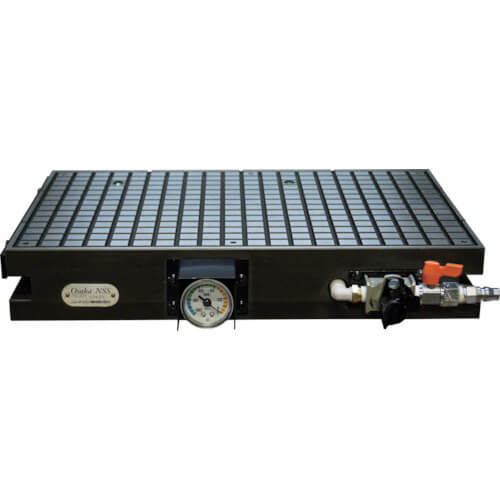

Vacuum Chuck

มีค่าขนส่ง
฿81,353
฿112,642
แบรนด์ NEW STRONG
รหัสสินค้า VCIM-2540
รหัสบาร์โค้ด 4560290967743
รหัสสั่งซื้อ 451-6133
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO TH
คำเตือน สินค้าขนาดใหญ่ / หนัก มีค่าขนส่ง
  • It uses compressed air from the compressor in the factory so it does not require a vacuum pump.
  • Drilling can be done by using the sub-plate.
  • There are key grooves on the bottom so accurate parallelism and right angle can be obtained.
ข้อมูลสินค้า
  • Suction Surface (mm) : 250 x 400
  • W x D (mm) : 250 x 400
  • Total Height (mm) : 65
  • Number of Vacuum Ports : 2
  • Air Consumption (L/min) : 78
  • Max Suction (kN) : 3.60
  • Parallelism : ±0.01mm
  • Top and bottom polished finishing
น้ำหนัก 28kg
การใช้งาน
  • For non-magnetic material (aluminium, stainless steel, plastic, etc.)thinning for machining, milling machines and polishing machines.
  • คำเตือน
    • All production lot numbers are finished with the same degree of parallelism.
    ประเทศที่ผลิต Japan
    เว็บของ Supplier NEW STRONG VCIM-2540
    หม่วดหมู่แบรนด์ NEW STRONG
    หม่วดหมู่สินค้า อุปกรณ์เครื่องจักร ทูลลิ่ง จิ๊กฟิกซ์เจอร์ หัวจับแท่นกลึง ปากจับชิ้นงานสำหรับเครื่องกลึง หัวจับเครื่องกลึง และแท่นจับเครื่องกัด
