NEW STRONG

SDC-2400NK

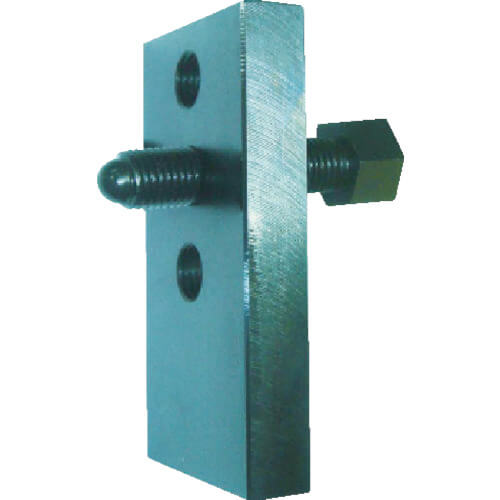

Side Clamp

฿5,442
฿7,535
แบรนด์ NEW STRONG
รหัสสินค้า SDC-2400NK
รหัสบาร์โค้ด 4560290967835
รหัสสั่งซื้อ 472-8041
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • It can be set just by inserting it to tables such as a sub table.
  • The clamp bolt is tilted by 5°, so it prevents lifting during clamping.
  • There are three screw hole positions for clamp bolts so it can be changed as necessary.
ข้อมูลสินค้า
  • Width (mm) : 63
  • Height (mm) : 150
  • Depth (mm) : 24 (0 to -0.02)
  • Clamp stroke (mm) : 43
  • Position of screw from bottom (mm) : 85・110・135
วัสดุ
  • Main body : S50C
  • Clamp bolt : S45C
อุปกรณ์ในกล่อง
  • Main body/clamp bolt (CBA-1670NK)
น้ำหนัก 2.54kg
การใช้งาน
  • Positioning, paralleling, clamping.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier NEW STRONG SDC-2400NK
    หม่วดหมู่แบรนด์ NEW STRONG
    หม่วดหมู่สินค้า อุปกรณ์เครื่องจักร ทูลลิ่ง จิ๊กฟิกซ์เจอร์ บล็อกปรับมุมวัด บล็อกปรับมุมวัด
