TOMOE

700Z-2F-50-S13-E

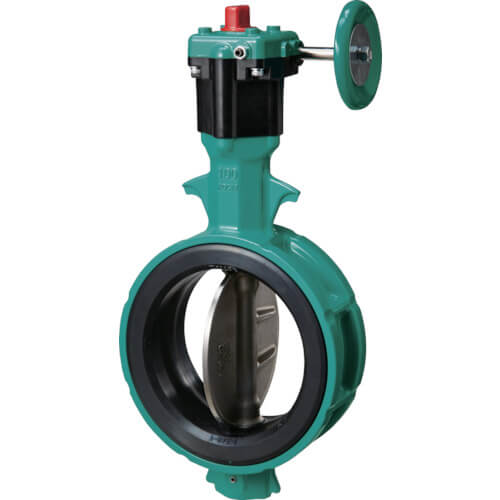

Aluminium Diecast Body Butterfly Valve

จำหน่ายในไทยไม่ได้
฿6,318
฿8,748
แบรนด์ TOMOE
รหัสสินค้า 700Z-2F-50-S13-E
รหัสบาร์โค้ด
รหัสสั่งซื้อ 495-4521
กำหนดการจัดส่ง
ไม่เกิน 2 ชิ้น : 30 วันทำการ
3 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางเรือ
ซัพพลายเออร์ TRUSCO JP
  • Developed the world’s first aluminum die cast valve, further evolved long-selling products.
  • We have improved sealability and durability.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 50
  • Nominal Diameter (B) : 2
  • Height (mm) : 258.0
  • d (mm) : 91
  • D (mm) : 43
  • L (mm) : 56.0
  • Applicable Flange Standard : JIS10K
  • Max Allowable Pressure : 1.0MPa
  • Working Temperature Range : -20 to 120°C
  • Continuous Working Temperature Range : -10 to 70°C
  • JIS B 2032 Compliant Product
  • ClassNK certified product
  • Lock Lever Type
วัสดุ
  • Main body : Aluminum (ADC12)
  • Seat Ring : Rubber (EPDM)
  • Valve Body : Stainless Steel (SCS13)
น้ำหนัก 980 g
การใช้งาน
  • Water treatment and construction general use.
  • ประเทศที่ผลิต Indonesia
    เว็บของ Supplier TOMOE 700Z-2F-50-S13-E
    หม่วดหมู่แบรนด์ TOMOE
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา วาล์ว วาล์วปีกผีเสื้อ
