FLOBAL

VU-08

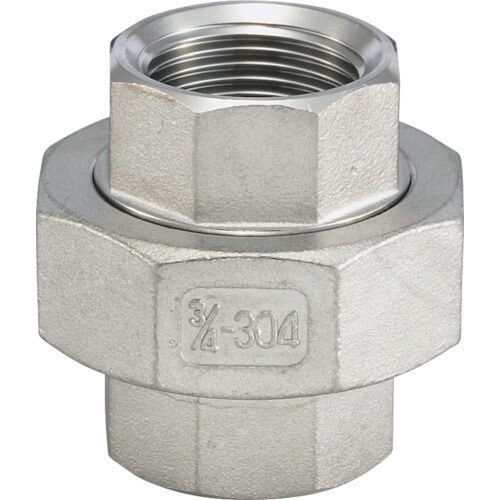

Screwed type Pipe Fitting

฿1,024
฿1,228
แบรนด์ FLOBAL
รหัสสินค้า VU-08
รหัสบาร์โค้ด 4549123022019
รหัสสั่งซื้อ 734-2969
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • Supports stainless steel piping.
  • This product is developed as a more easy-to-use coupling that is an upgraded version of the existing threaded type coupling.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 25
  • Nominal Diameter (B) : 1
  • L (mm) : 54.0
  • Applicable standard : JIS B2301, JIS B0203 compliant
  • Max operating pressures : 1.0 MPa (air, gas and oil at 200℃ or lower), 2.0MPa (-20 to 120℃ or lower), however, steams is 0.5MPa or less (up to 150℃)
  • Working fluid : Water, air, gas, oil and steam (excludes toxic, flammable or combustion assisting gasses.)
  • Gasket uses pillar technograph sheet (pillar no.5650)
วัสดุ
  • Stainless Steel (SCS13A)
น้ำหนัก 431 g
การใช้งาน
  • For steam, air, gas and oil.
  • ประเทศที่ผลิต China
    ข้อมูลจากผู้ผลิต FLOBAL VU-08 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ FLOBAL
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา ข้อต่อเกลียว ข้อต่อเกลียวสแตนเลส
