| ข้อมูลสินค้า |
- Number of Poles : 20
- L x W x H (mm) : 140 x 59.5 x 46.5
- Mounting Pitch (mm) : 130
- Rated voltage : IEC 800V/UL 600V
- Rated current : IEC 24A/UL 25
- Cable Size : 0.5 to 4.0[[MM2]]/AWG NO.30 to 12
- Compatible Standard : CE, UL, CSA, EAC
- Wire Cut Length : 10mm
- Working Temperature Range : -50 to 120°C
- Compatible Tools : Flat-Head Driver/Straight Type (blade thickness x blade width)0.6 x 3.5mm
- Compatible Screwdriver : SDS 0.6 x 3.5 x 100 (9008330000)
- Rail Width : 35mm

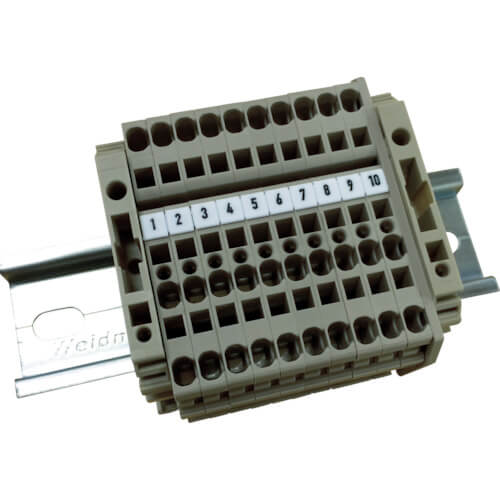

- With Marker : From the Left Starting at 1
|
