SMC

AC40-03G-B

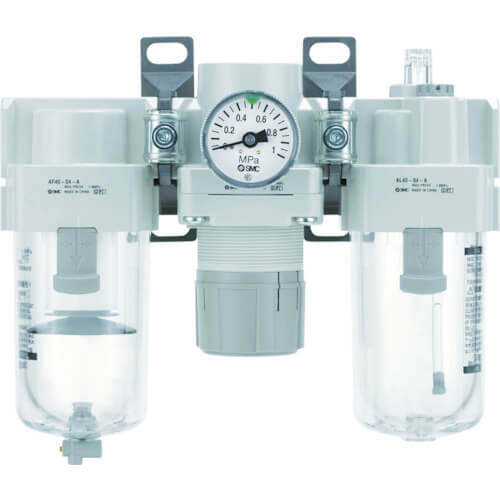

Modular Type F.R.L. Unit

฿8,304
฿11,498
แบรนด์ SMC
รหัสสินค้า AC40-03G-B
รหัสบาร์โค้ด
รหัสสั่งซื้อ 775-7689
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • An air combination.
  • A new space-saving design.
  • Ease of assembly has been improved.
  • By integrating the elements with the case, it has become possible to replacement elements by the hand.
  • Visibility and environmental resistance has been improved.
  • The entire perimeter has been covered with a transparent case guard.
ข้อมูลสินค้า
  • Filtration Precision (μm) : 5
  • Working Pressure (MPa) : 1
  • Set Pressure (MPa) : 0.05 to 0.85
  • Oil Reservoir Capacity ([[CM3]]) : 135
  • Connection Port Diameter : Rc3/8
  • Total Length (mm) : 186.9
  • Working fluid : Air
  • Fluid temperature : -5 to 60℃ (without freezing)
  • Drain discharge method : Manual
  • Working oil : Type 1 turbine oil (ISO VG#32 equivalent)
  • Pressure gauge with bracket
น้ำหนัก 1.39kg
ประเทศที่ผลิต China
เว็บของ Supplier SMC AC40-03G-B
หม่วดหมู่แบรนด์ SMC
หม่วดหมู่สินค้า อุปกรณ์นิวเมติกส์ อุปกรณ์นิวเมติก / อุปกรณ์ไฮดรอลิก ชุดกรองลมปรับแรงดัน ชุด FRL (ชุดปรับปรุงคุณภาพลม)
