FISCHER

48775

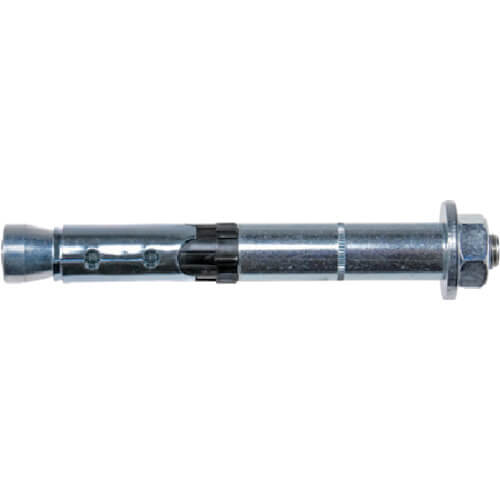

High Performance Anchor FH 2

฿6,005
฿7,206
แบรนด์ FISCHER
รหัสสินค้า 48775
รหัสบาร์โค้ด 4006209487754
รหัสสั่งซื้อ 779-3740
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • Interaction between the body part of the screw and the sleeve enables high shear load.
  • Construction is possible with a few number of anchors.
  • International certification ensures best safety and highest performance.
ข้อมูลสินค้า
  • Nominal Designation of Thread : M8
  • Total Length (mm) : 135
  • Width Across Flat (mm) : 13
  • Max Attachment Thickness (mm) : 50
  • Drill Diameter (mm) : 12
  • Standard Construction Torque (N・m) : 17.5
  • Maximum Tensile Load (kN) : 11.2
  • Max shear load (kN) : 15.4
  • Effective buried depth (mm) : 60
  • Pilot Hole Diameter (mm) : 12
  • European Technical Approval (ETA-07/0025)
  • International Code Council Certification
  • Packaged in a box
วัสดุ
  • Steel
  • Surface treatment : Zinc plated (trivalent chromate treatment)
น้ำหนัก 2.453kg
การใช้งาน
  • For concrete and dense stone.
  • Installation of various mounts.
  • Equipment construction.
  • Railing and exterior work, etc.
  • ประเทศที่ผลิต Germany
    ข้อมูลจากผู้ผลิต FISCHER 48775 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ FISCHER
    หม่วดหมู่สินค้า สกรู / ลูกล้อ / อุปกรณ์ติดตั้ง อุปกรณ์ยึดติด พุกเหล็ก พุกเหล็กแบบขันแน่น และ ฝาปิดรูเจาะนำร่อง
