FISCHER

523900

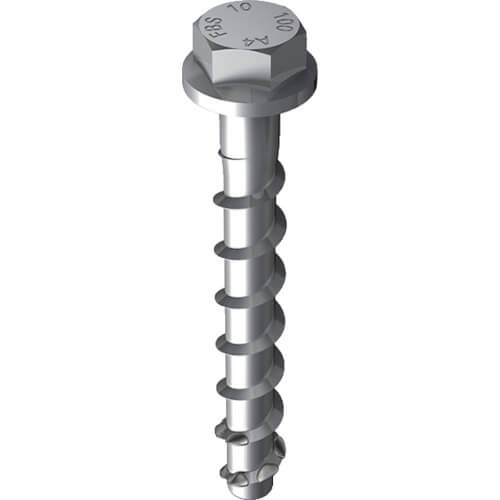

Concrete Screw Anchor

เลิกผลิต
แบรนด์ FISCHER
รหัสสินค้า 523900
รหัสบาร์โค้ด 4048962192759
รหัสสั่งซื้อ 779-5238
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Driving not required. A threaded type high strength anchor.
  • Can be casted with an impact wrench.
  • Removal after casting is easy and can be used for temporary constructions.
ข้อมูลสินค้า
  • Nominal Designation of Thread : M8
  • Total Length (mm) : 90
  • Screw Length (mm) : 80
  • Width Across Flat (mm) : 13
  • Pilot Hole Diameter (mm) : 8
  • Buried Depth (mm) : 65
  • Max Attachment Thickness (mm) : 15
  • Maximum Tensile Load (kN) : 5.7
  • Max shear load (kN) : 8.8
  • Packaged in a box
วัสดุ
  • Stainless Steel (equivalent to SUS316)
น้ำหนัก 1.022kg
การใช้งาน
  • For concrete and dense stone.
  • Installation of various mounts.
  • Equipment construction.
  • Railing and exterior work, etc.
  • ประเทศที่ผลิต Germany
    เว็บของ Supplier FISCHER 523900
    หม่วดหมู่แบรนด์ FISCHER
    หม่วดหมู่สินค้า สกรู / ลูกล้อ / อุปกรณ์ติดตั้ง อุปกรณ์ยึดติด พุกเหล็ก พุกเหล็กแบบขันแน่น และ ฝาปิดรูเจาะนำร่อง
