RUD

VLBS 16

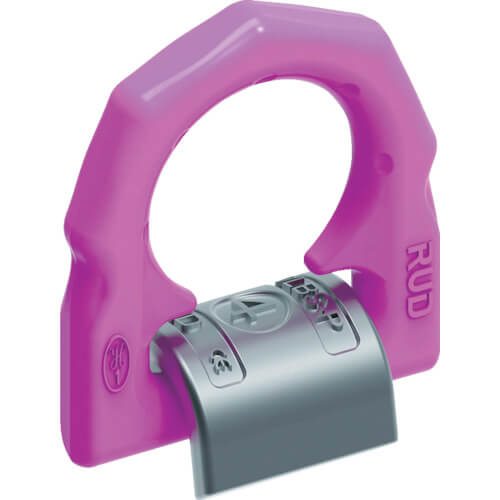

VLBS-Load ring

฿20,431
฿28,289
แบรนด์ RUD
รหัสสินค้า VLBS 16
รหัสบาร์โค้ด 4580269145354
รหัสสั่งซื้อ 819-5567
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Can be installed easily and quickly by welding.
  • The tension spring supports the ring in a designated position and reduces noise (1, 5t to 10t).
  • This product is DIN5688 compliant, and quality grades are 100 and 80. It also passed the 100% magnetic particle test.
  • The spacer (about 3mm)functions as a gap filling material required for root running.
  • For the location of welding seams (HV penetrating type), the DIN18800 requirements can be met. In other words, seams are completely shielded and development of a corrosion layer is unlikely, enabling its use outdoors.
ข้อมูลสินค้า
  • Basic Working Load (t) : 16.0
  • B : 190
  • D : 69
  • E : 105
  • H : 214.0
  • T : 174
  • C : 100
  • Dimension (mm) A : 96
วัสดุ
  • Nickel Chrome Molybdenum Steel
  • Welding compatible material St52.3 (1.0570)forged product
น้ำหนัก 7.12kg
ประเทศที่ผลิต Germany
เว็บของ Supplier RUD VLBS 16
