RUD

VLBG-Z 2.5T 7/8-9UNC

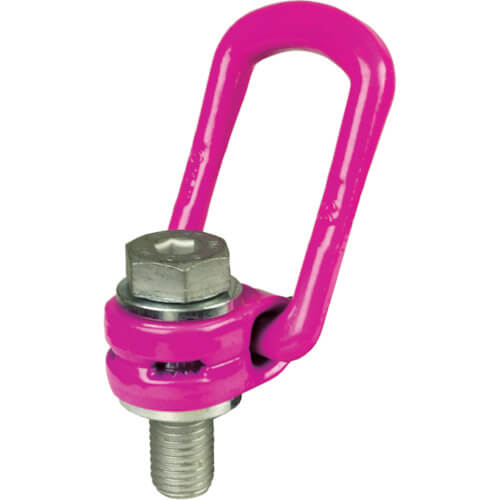

Load ring UNC thread

฿9,912
฿11,895
แบรนด์ RUD
รหัสสินค้า VLBG-Z 2.5T 7/8-9UNC
รหัสบาร์โค้ด 4580269143770
รหัสสั่งซื้อ 819-5675
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • Lateral lifting work of the eye bolt which was impossible up to now can be performed safely.
  • Main body part rotates 360° without loosening the bolt to the load direction.
  • An ICE steel bolt is used to make it stronger for impact loads.
  • Possible to install it to molding die for overseas with CE marking product.
  • High strength/compact design.
  • Strong because of a ring without seams.
  • Surface coating that changes color at ambient temperature (patent)is applied.
  • Up to M100 internal thread can be corresponded with conversion adapter (sold separately).
ข้อมูลสินค้า
  • Basic Working Load (t) : 2.5
  • Bolt Size : 7/8-9UNC
  • A : 50
  • B : 82
  • C : 54
  • F : 16.5
  • Dimension (mm) T : 110
  • Spanner Size (mm) : 1 5/16
วัสดุ
  • Nickel Chrome Molybdenum Steel
น้ำหนัก 1.25kg
การใช้งาน
  • Used for lifting heavy objects such as molding dies, concrete (PC), wind power, civil engineering, shipbuilding, precision/machine tools, transportation industry, etc.
  • ประเทศที่ผลิต Germany
    ข้อมูลจากผู้ผลิต RUD VLBG-Z 2.5T 7/8-9UNC (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
