NTN

UCFC215D1

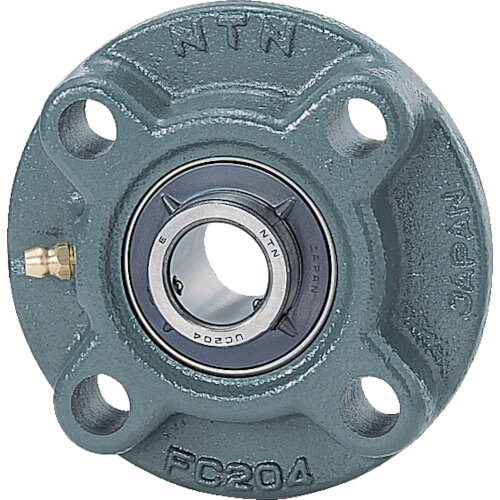

Flanged Cartridge Unit Cast Housing Set Screw type

฿5,237
฿7,251
แบรนด์ NTN
รหัสสินค้า UCFC215D1
รหัสบาร์โค้ด 4547359000863
รหัสสั่งซื้อ 819-7134
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • A cylindrical spigot joint is installed on the mounting surface of the bearing housing and it is fit into the frame. It has little eccentricity when being mounted and the positioning is also correct.
ข้อมูลสินค้า
  • Shaft Diameter (mm) : 75
  • Total Length (mm) : 220
  • Total Height (mm) : 220
  • Mounting Pitch (mm) : 184.0
  • Mounting Screw : M16
  • Oil-lubrication type round flanged shape with spigot joint
  • Lock Screw Type
  • Working Temperature Range : -15 to 100°C
วัสดุ
  • Bearing : High carbon chromium steel bearing
  • Bearing Housing : Cast Iron
น้ำหนัก 7.5kg
การใช้งาน
  • For drum pulleys, etc.
  • ประเทศที่ผลิต Japan
    เว็บของ Supplier NTN UCFC215D1
    หม่วดหมู่แบรนด์ NTN
    หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ตลับลูกปืน / อุปกรณ์ขับขี่ / ชิ้นส่วนเกียร์ ตลับลูกปืนตุ๊กตา ตลับลูกปืนตุ๊กตา (แบบหน้าแปลน)
