ESLON

TSF505

TS Flange

฿515
฿713
แบรนด์ ESLON
รหัสสินค้า TSF505
รหัสบาร์โค้ด 4901860809047
รหัสสั่งซื้อ 836-5583
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP

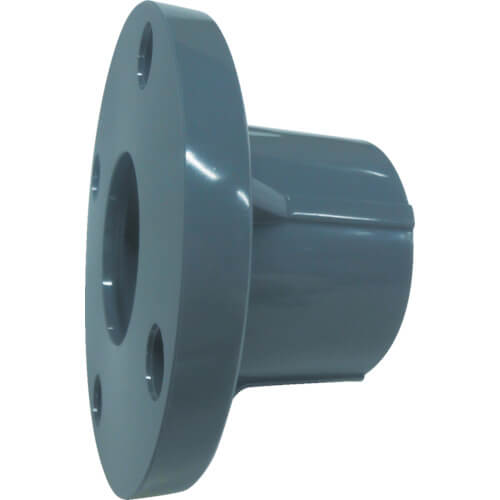

  • PVC flange with excellent corrosion resistance.
  • This flange can be used safely in acidic or alkaline chemical, as well as sea water without corroding.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 50
  • Nominal Diameter (B) : 2
  • Inner Diameter (mm) : 52
  • Outer Diameter (mm) : 130
  • Thickness (mm) : 14
  • L (mm) : 70
  • Center diameter (mm) : 105
  • Number : 4
  • Bolt hole Diameter (mm) : 15
  • Max Working Temperature : 60°C
  • Max allowable pressure : 0.5MPa (20℃)
  • JIS5K specification
วัสดุ
  • Hard polyvinyl chloride (PVC)
น้ำหนัก 310 g
การใช้งาน
  • Chemical plants chemical piping, semiconductor factory pure water piping, fishery factory seawater piping and pipings for food factory waste water treatment line.
  • ประเทศที่ผลิต Taiwan
    เว็บของ Supplier ESLON TSF505
