ESLON

FSB1H5

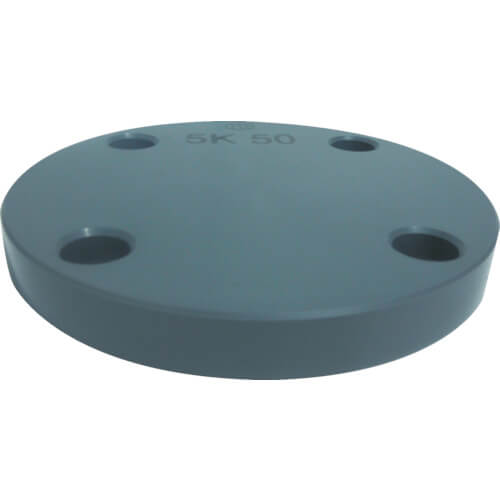

SB type(Blind Flange)

฿1,338
฿1,853
แบรนด์ ESLON
รหัสสินค้า FSB1H5
รหัสบาร์โค้ด 4901860696913
รหัสสั่งซื้อ 836-5591
สต็อกในไทย0
สต็อกในญี่ปุ่น5
กำหนดการจัดส่ง
ไม่เกิน 5 ชิ้น : 9 วันทำการ
6 ชิ้นขึ้นไป : โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • PVC SB flange with excellent corrosion resistance. This flange can be used safely in acidic or alkaline chemical, as well as sea water without corroding.
ข้อมูลสินค้า
  • Nominal Diameter (A) : 100
  • Nominal Diameter (B) : 4
  • Outer Diameter (mm) : 200
  • Thickness (mm) : 16
  • Center diameter (mm) : 165
  • Number : 8
  • Bolt hole Diameter (mm) : 19
  • Max Working Temperature : 60°C
  • Max allowable pressure : 0.5MPa (20℃)
วัสดุ
  • Hard Polyvinyl Chloride (PVC)
น้ำหนัก 445 g
การใช้งาน
  • For various pipings such as chemical plants chemical piping, semiconductor factory pure water piping, fishery factory seawater piping and food factory waste water treatment line.
  • ประเทศที่ผลิต Taiwan
    เว็บของ Supplier ESLON FSB1H5
    หม่วดหมู่แบรนด์ ESLON
    หม่วดหมู่สินค้า ปั๊ม / วาล์ว / อุปกรณ์ก่อสร้าง อุปกรณ์ประปา หน้าแปลน หน้าแปลนพลาสติก
