KHK

SMB5-20

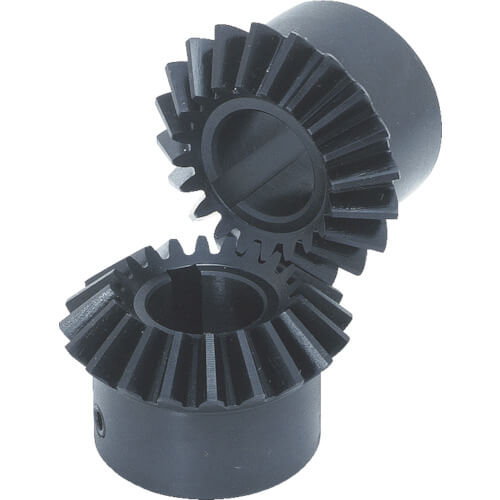

Finished Bore Miter Gear

฿3,920
฿5,427
แบรนด์ KHK
รหัสสินค้า SMB5-20
รหัสสั่งซื้อ 856-6278
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO JP
  • Finished products that can be used without the need of additional processing.
ข้อมูลสินค้า
  • Module : 5.0
  • Number of teeth : 20
  • Reference diameter (mm) : Φ100.0
  • Assembly distance (mm) : 90
  • Hole Diameter (mm) : Φ30
  • Total Length (mm) : 60.38
  • Tooth width (mm) : 26
  • Gear accuracy : JISB1704 : 1978 : Grade 4
  • Tooth shape : Gleason
  • Pressure angle : 20°
  • Heat treatment : Tooth surface induction quenching
  • Gear ratio : 1
วัสดุ
  • S45C
น้ำหนัก 2.04kg
ประเทศที่ผลิต Japan
เว็บของ Supplier KHK SMB5-20
หม่วดหมู่แบรนด์ KHK
หม่วดหมู่สินค้า ชิ้นส่วนเมคคาทรอนิกส์ ตลับลูกปืน / อุปกรณ์ขับขี่ / ชิ้นส่วนเกียร์ เฟืองเกียร์ เฟืองเปลี่ยนทิศทาง / เฟืองดอกจอกแบบพิเศษ
