RUD

VLBG-PLUS-M48

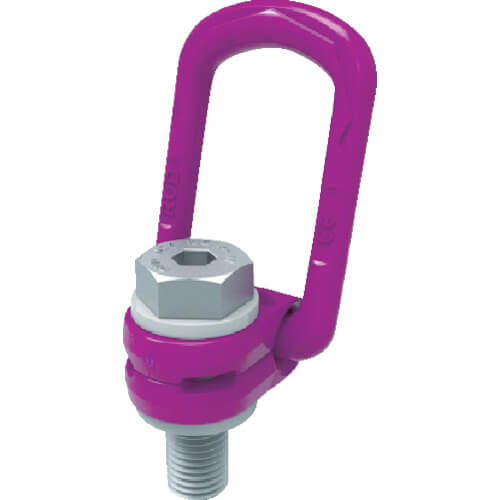

Load Ring Plus Thread Metric

฿42,905
฿51,486
แบรนด์ RUD
รหัสสินค้า VLBG-PLUS-M48
รหัสบาร์โค้ด 4580269146207
รหัสสั่งซื้อ 858-7650
สต็อกในไทย 0
สต็อกในญี่ปุ่น 2
กำหนดการจัดส่ง 8 วันทำการ
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO
  • Lateral lifting work of the eye bolt which was impossible up to now can be performed safely.
  • Main body part rotates 360° without loosening the bolt to the load direction.
  • An ICE steel bolt is used to make it stronger for impact loads.
  • Possible to install it to molding die for overseas with CE marking product.
  • High strength/compact design.
  • Strong because of a ring without seams.
  • Surface coating that changes color at ambient temperature (patent)is applied.
  • Up to M100 internal thread can be corresponded with conversion adapter (sold separately).
ข้อมูลสินค้า
  • Basic Working Load (t) : 20.00
  • Bolt Size : M48
  • A : 95
  • B : 156
  • C : 100
  • F : 36.0
  • Dimension (mm) T : 222
  • Spanner Size (mm) : 75
วัสดุ
  • ICE steel
น้ำหนัก 11.6kg
การใช้งาน
  • Used for lifting heavy objects such as molding dies, concrete (PC), wind power, civil engineering, shipbuilding, precision/machine tools, transportation industry, etc.
  • ประเทศที่ผลิต Germany
    ข้อมูลจากผู้ผลิต RUD VLBG-PLUS-M48 (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
    หม่วดหมู่แบรนด์ RUD
    หม่วดหมู่สินค้า แม่แรง / วินซ์ / รอก แคลมป์ยกเหล็ก / สลิง / เข็มขัดรัดสินค้า อายโบลท์ อายโบลท์
