RUD

VLBG-PLUS-M36L

Load Ring Plus Thread Metric

มีค่าขนส่ง
฿43,357
฿55,744
แบรนด์ RUD
รหัสสินค้า VLBG-PLUS-M36L
รหัสบาร์โค้ด 4580269146283
รหัสสั่งซื้อ 858-7658
สต็อกในไทย 0
สต็อกในญี่ปุ่น 0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO

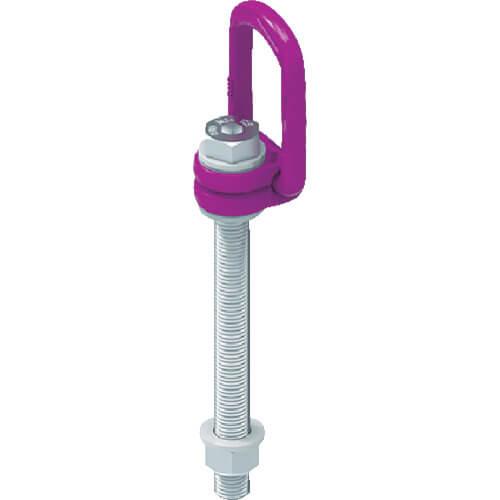

  • Lateral lifting work of the eye bolt which was impossible up to now can be performed safely.
  • Main body part rotates 360° without loosening the bolt to the load direction.
  • An ICE steel bolt is used to make it stronger for impact loads.
  • Possible to install it to molding die for overseas with CE marking product.
  • High strength/compact design.
  • Strong because of a ring without seams.
  • Surface coating that changes color at ambient temperature (patent)is applied.
  • Up to M100 internal thread can be corresponded with conversion adapter (sold separately).
ข้อมูลสินค้า
  • Basic Working Load (t) : 8.00
  • Bolt Size : M36
  • A : 77
  • B : 122
  • C : 82
  • F : 26.5
  • Dimension (mm) T : 197
  • Spanner Size (mm) : 55
วัสดุ
  • ICE steel
น้ำหนัก 7.2kg
การใช้งาน
  • Used for lifting heavy objects such as molding dies, concrete (PC), wind power, civil engineering, shipbuilding, precision/machine tools, transportation industry, etc.
  • ประเทศที่ผลิต Germany
    ข้อมูลจากผู้ผลิต RUD VLBG-PLUS-M36L (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
