RUD

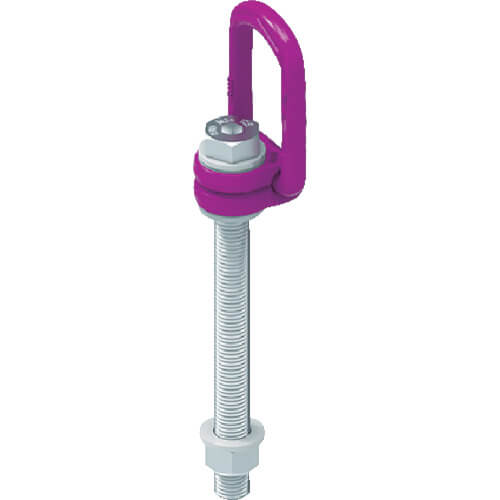

VLBG-PLUS-M48L

Load Ring Plus Thread Metric

มีค่าขนส่ง
฿54,839
฿75,931
แบรนด์ RUD
รหัสสินค้า VLBG-PLUS-M48L
รหัสบาร์โค้ด 4580269146313
รหัสสั่งซื้อ 858-7661
สต็อกในไทย0
สต็อกในญี่ปุ่น0
กำหนดการจัดส่ง โปรดติดต่อเจ้าหน้าที่
วิธีการนำเข้า ทางแอร์
ซัพพลายเออร์ TRUSCO TH
คำเตือน สินค้าขนาดใหญ่ มีค่าขนส่ง
  • Lateral lifting work of the eye bolt which was impossible up to now can be performed safely.
  • Main body part rotates 360° without loosening the bolt to the load direction.
  • An ICE steel bolt is used to make it stronger for impact loads.
  • Possible to install it to molding die for overseas with CE marking product.
  • High strength/compact design.
  • Strong because of a ring without seams.
  • Surface coating that changes color at ambient temperature (patent)is applied.
  • Up to M100 internal thread can be corresponded with conversion adapter (sold separately).
ข้อมูลสินค้า
  • Basic Working Load (t) : 20.00
  • Bolt Size : M48
  • A : 95
  • B : 156
  • C : 100
  • F : 36.0
  • Dimension (mm) T : 222
  • Spanner Size (mm) : 75
วัสดุ
  • ICE steel
น้ำหนัก 14.75kg
การใช้งาน
  • Used for lifting heavy objects such as molding dies, concrete (PC), wind power, civil engineering, shipbuilding, precision/machine tools, transportation industry, etc.
  • ประเทศที่ผลิต Germany
    ข้อมูลจากผู้ผลิต RUD VLBG-PLUS-M48L (ลิงค์นี้จะพาคุณไปสู่เว็บไซต์ภาษาญี่ปุ่น)
