05074810010 WERA 1460 ESD Kraftform Micro torque screwdrivers with a customised factory pre-set measurement value with quick-release chuck Item number:1461 ESD mm Main scale measuring range:0.05-0.11 mm Torque wrench length:131 mm Torque wrench length (inches):5 1/4" inch

แบรนด์	WERA
รหัสสินค้า	05074810010
รหัสบาร์โค้ด	4013288188311
รหัสสั่งซื้อ	W181-05074810010
สต็อกในไทย	0
กำหนดการจัดส่ง	โปรดติดต่อเจ้าหน้าที่
ผู้นำเข้า	KTW
ซัพพลายเออร์	KTW

สอบถามสินค้า

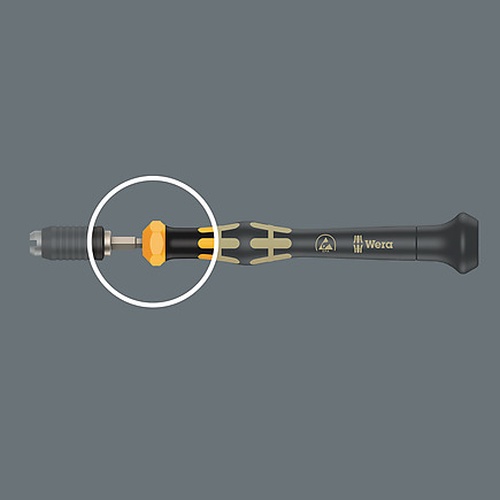

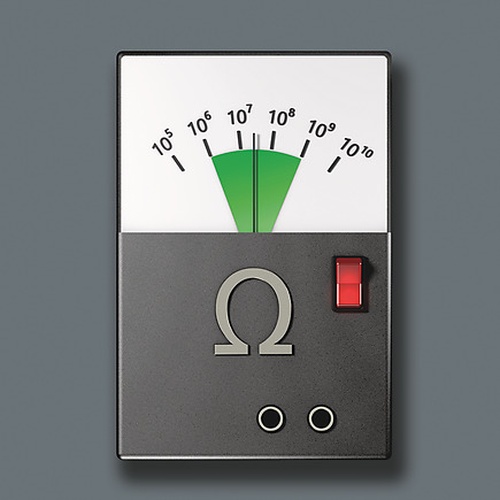

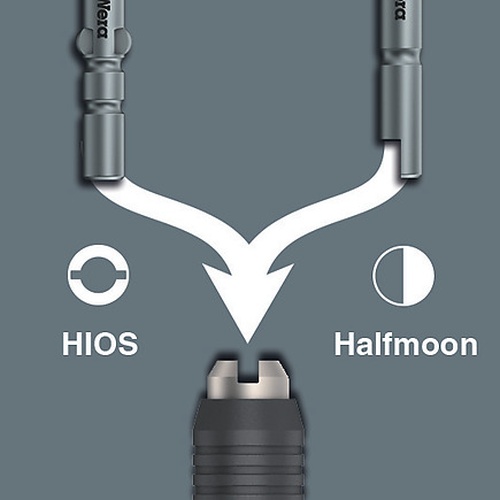

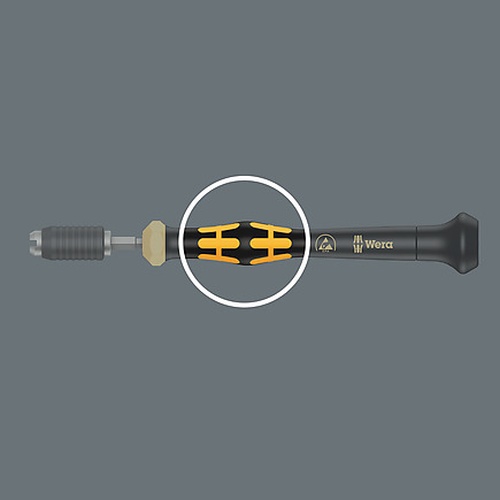

With a customised factory pre-set torque value. The torque can be changed with an extra tool within the measuring range (re-calibration kit can be ordered with the code number 05137004001). Afterwards you can check the set value using an off-the-shelf torque tester. Compact handle/interchangeable blades system for torque-controlled precision screwdriving. The Kraftform Micro ESD torque screwdriver is ideal for torque-controlled jobs on electrostatically sensitive components. Suitable for bits with a 4 mm Halfmoon drive (Wera series 9) and a 4 mm HIOS drive (Wera series 21). Tamper-proof. Clearly audible and tactile signal when the set torque is reached. Repeatability is 100% guaranteed. Unlimited manual loosening torque. Electrical surface resistance ≤ 109 ohms for safe protection against electrostatic charge. Manufactured as per DIN EN 61340-5-1. Handle/interchangeable blades system for rapid blade changes. Kraftform Micro handle with rotating cap and free-turning zone for rapid turning, making any time-consuming repositioning of the fingers unnecessary. Power zone with integrated soft zones ensures the transmission of high tightening and loosening torques. Precision zone directly above the blade for the correct rotation angle for adjustment work. Rapid bit fixing: Simply push the bit into the holder for automatic locking and a secure fit. To change the bit, simply push the sleeve forward and remove the bit. Free-running actuating sleeve for easy handling of the tool during the screwdriving process. Bits suitable for manual and machine operated screwdriving connections with electric screwdrivers (including HIOS, Delvo, Sehan). Use with e.g. smartphones, mobile phones, cameras, electronic devices, in dental laboratories and dental surgeries.Please note: 1 Ncm = 0.01 Nm.

ข้อมูลสินค้า	Customized pre-set, adjustable Kraftform ESD torque screwdriver ESD-safe tool thanks to surface resistance of ≤ 109 Ohm Distinct audible and perceivable excess load signal when the pre-set torque value is reached Suitable for the take-up of bits with 4 mm halfmoon drive and 4 mm HIOS drive Applications e.g. on smartphones, mobile phones, cameras, electronic equipment
น้ำหนัก
คำเตือน	Adjustable within the specified measuring range upon customer request, The desired settings can be made in the following units: Nm, kgf. m, lbf. ft., ozf. in., dN. m, kgf. cm, lbf. in, in. oz, cN. m, gf. m, ft. lb, gf. cm, in. lb.
ประเทศที่ผลิต	Czech
เว็บของ Supplier	WERA 05074810010
หม่วดหมู่แบรนด์	WERA Features Non-roll feature ESD Tool Halfmoon and HIOS Torque Tools 7400 ESD series Kraftform Torque screwdrivers, with factory pre-set value of your choice
หม่วดหมู่สินค้า

ดาวน์โหลด PDF

ชื่อสินค้า	รูปสินค้า	รหัสสินค้า (รหัสสั่งซื้อ)	ราคา	สต็อก

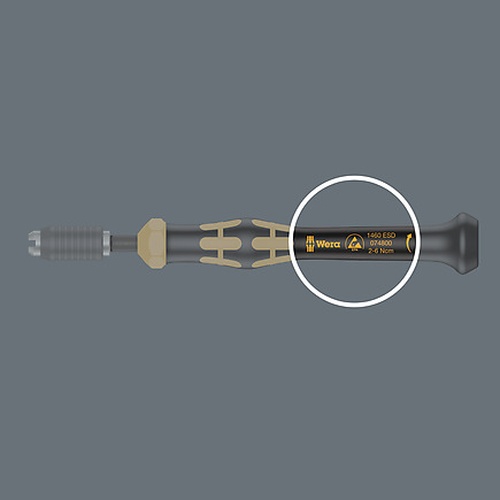

1460 ESD Kraftform Micro torque screwdrivers with a customised factory pre-set measurement value with quick-release chuck Item number:1460 ESD mm Main scale measuring range:0.02-0.06 mm Torque wrench length:131 mm Torque wrench length (inches):5 1/4″ inch		05074800010 W181-05074800010		0
1460 ESD Kraftform Micro torque screwdrivers with a customised factory pre-set measurement value with quick-release chuck Item number:1461 ESD mm Main scale measuring range:0.05-0.11 mm Torque wrench length:131 mm Torque wrench length (inches):5 1/4″ inch		05074810010 W181-05074810010		0

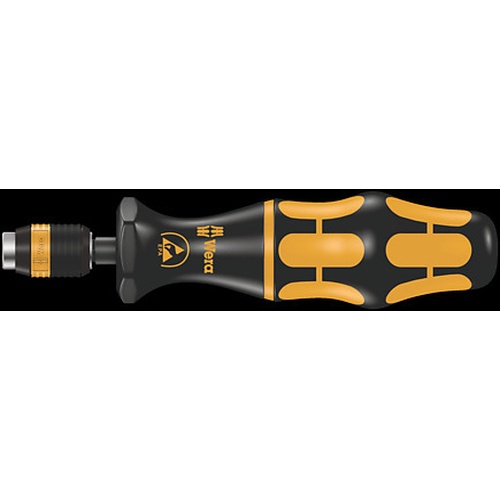

Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, handle size 105 mm Item number:7460 ESD mm Mounting size:1/4″ mm Main scale measuring range:0.3-1.2 mm Handle length:105 mm Torque wrench length:155 mm Torque wrench length (inches):5 15/64″ inch		05074840010 W181-05074840010		0
Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, handle size 105 mm Item number:7461 ESD mm Mounting size:1/4″ mm Main scale measuring range:1.2-3.0 mm Handle length:105 mm Torque wrench length:155 mm Torque wrench length (inches):6 7/64″ inch		05074842010 W181-05074842010		0
Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, handle size 89 mm Item number:7450 ESD mm Mounting size:1/4″ mm Main scale measuring range:0.1-0.34 mm Handle length:89 mm Torque wrench length:133 mm Torque wrench length (inches):5 1/4″ inch		05074820010 W181-05074820010		0
Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, handle size 89 mm Item number:7451 ESD mm Mounting size:1/4″ mm Main scale measuring range:0.3-1.0 mm Handle length:89 mm Torque wrench length:133 mm Torque wrench length (inches):5 1/4″ inch		05074822010 W181-05074822010		0
Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, handle size 89 mm Item number:7452 ESD mm Mounting size:1/4″ mm Main scale measuring range:0.9-1.5 mm Handle length:89 mm Torque wrench length:133 mm Torque wrench length (inches):5 1/4″ inch		05074824010 W181-05074824010		0
Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, with quick-release chuck Item number:7455 ESD mm Main scale measuring range:0.1-0.34 mm Handle length:89 mm Torque wrench length:138 mm Torque wrench length (inches):5 1/4″ inch		05074826010 W181-05074826010		0
Series 7400 ESD Kraftform torque screwdrivers with a customised factory pre-set measurement value, with quick-release chuck Item number:7456 ESD mm Main scale measuring range:0.3-1.0 mm Handle length:89 mm Torque wrench length:138 mm Torque wrench length (inches):5 1/4″ inch		05074828010 W181-05074828010		0
