หน้าหลัก > Click-Torque Lock A 5 Torque wrench, adjustable, Torque Lock function, reversible ratchet, clockwise torque operation, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch
Click-Torque Lock A 5 Torque wrench, adjustable, Torque Lock function, reversible ratchet, clockwise torque operation, 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch

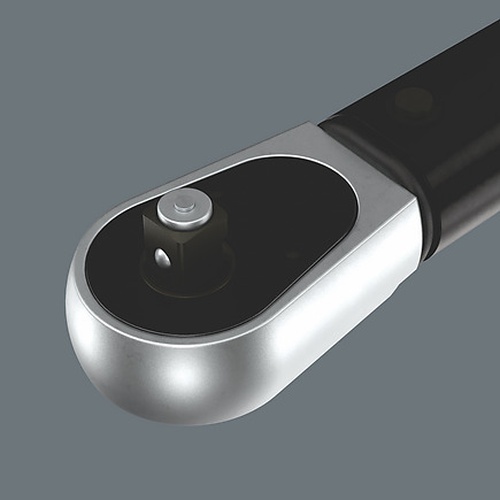

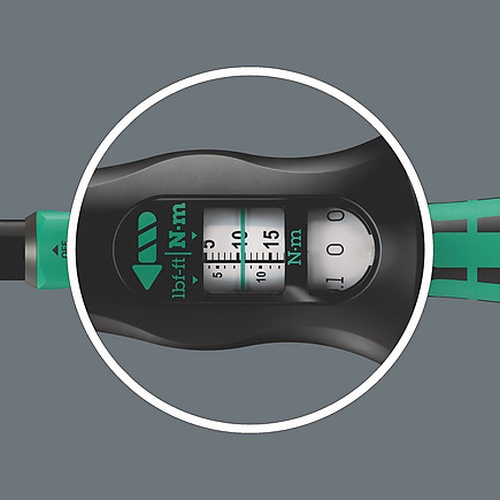

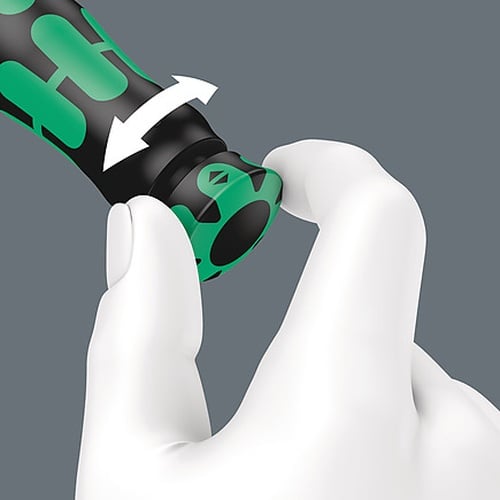

Adjustable torque wrench for controlled clockwise torque operation. With ¼” square head drive. The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. Fine-toothed reversible ratchet with 45 teeth. Accuracy of ±4 % as per DIN EN ISO 6789-1:2017-07.
ข้อมูลสินค้า
With ¼" square head drive

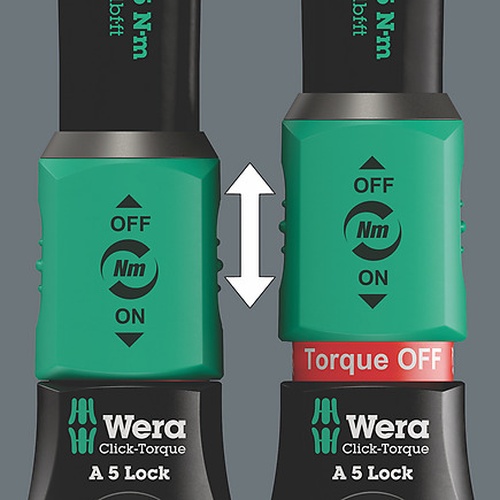

Torque Lock function: The torque function can be deactivated so that the tool can also be used for loosening

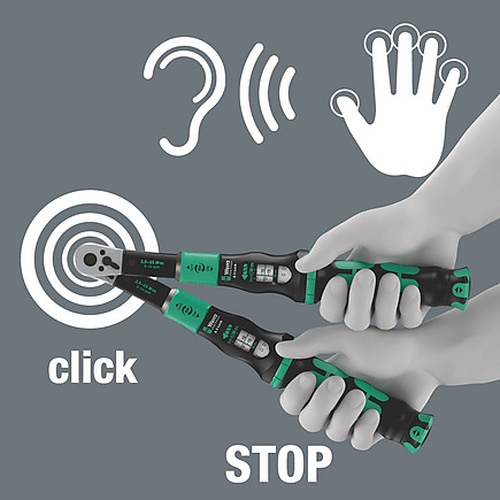

Extra click: audible and tactile torque setting
Torque wrench gives an audible and tactile signal
Measuring range: 2.5-25 Nm; precision ± 4 % as per DIN EN ISO 6789-1:2017-07
