Click-Torque Lock A 6 R/L Torque wrench, adjustable, Torque Lock function, continuous bit mounting (1/4″), 2.5-25 Nm Mounting size:1/4″ mm Main scale graduation:0.10 mm Main scale measuring range:2.5-25 mm Subscale measuring range:1-18 mm Torque wrench length:299 mm Handle length G2:123 mm Clock diameter:42 mm Diameter of the head:26 mm Height ratchet head H2:11.75 mm Torque wrench length (inches):11 49/64″ inch Handle length G2 (inches):4 53/64″ inch Watch diameter (inches):1 41/64″ inch Tip diameter (inches):1 1/64″ inch Ratchet head height H2 (inches):29/64″ inch
Adjustable torque wrench for controlled clockwise and counterclockwise torque operation. With continuous external hexagon mounting for 1/4″ hex drive bits (bits can be inserted from both sides of the torque wrench). Also suitable for 1/4″ sockets with the 870/1 adapter (05136000001). The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. Fine-toothed reversible ratchet with 45 teeth. Accuracy of ±4 % as per DIN EN ISO 6789-1:2017-07.
ข้อมูลสินค้า
For clockwise and counterclockwise operation

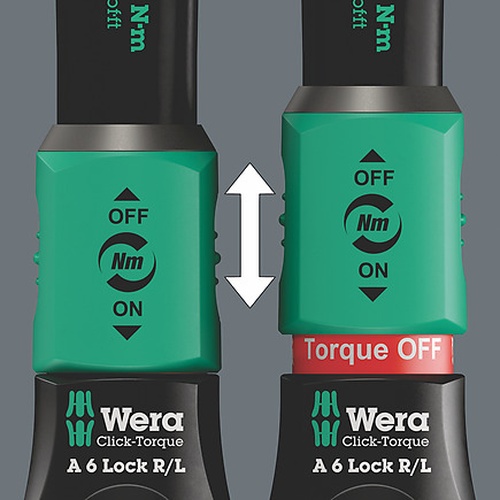

Torque Lock function: The torque function can be deactivated so that the tool can also be used for loosening

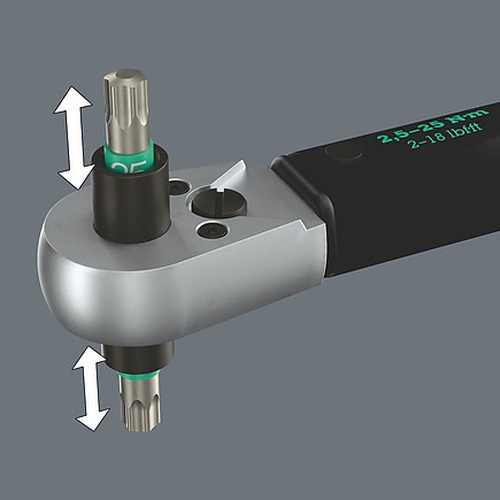

With continuous bit mounting (1/4") for controlled clockwise and counterclockwise torque operation

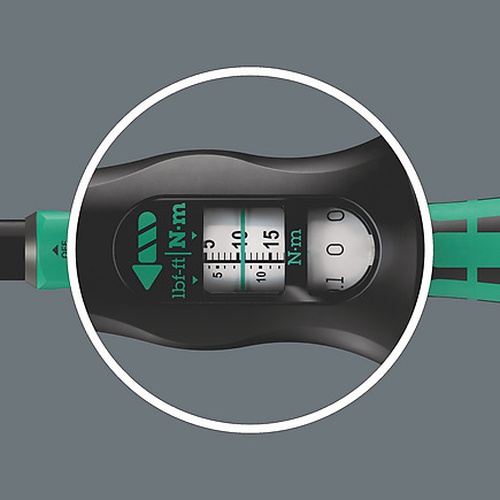

Extra click: audible and tactile torque setting

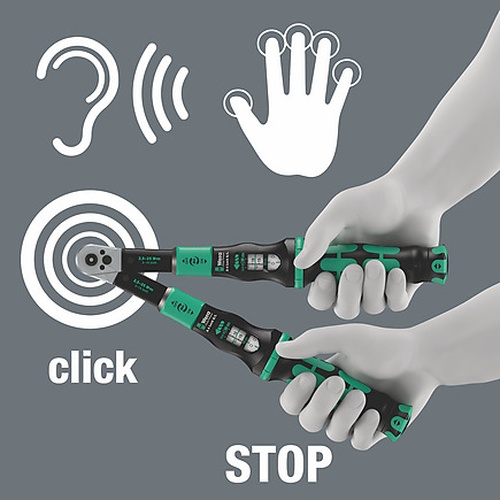

Torque wrench gives an audible and tactile signal
Measuring range: 2.5-25 Nm; precision ± 4 % as per DIN EN ISO 6789-1:2017-07
